Text from PDF Page: 002

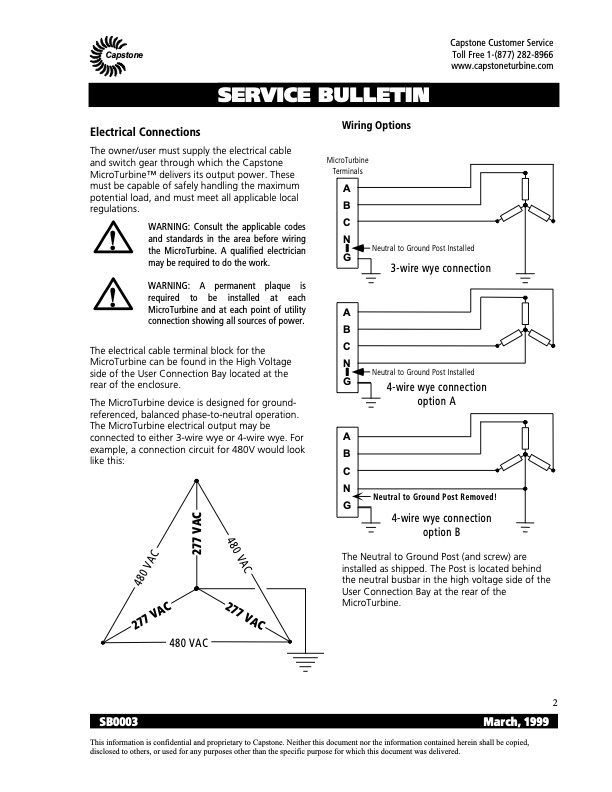

Capstone Electrical Connections The owner/user must supply the electrical cable and switch gear through which the Capstone MicroTurbineTM delivers its output power. These must be capable of safely handling the maximum potential load, and must meet all applicable local regulations. WARNING: Consult the applicable codes and standards in the area before wiring the MicroTurbine. A qualified electrician may be required to do the work. ! The electrical cable terminal block for the MicroTurbine can be found in the High Voltage side of the User Connection Bay located at the rear of the enclosure. The MicroTurbine device is designed for ground- referenced, balanced phase-to-neutral operation. The MicroTurbine electrical output may be connected to either 3-wire wye or 4-wire wye. For example, a connection circuit for 480V would look like this: Capstone Customer Service Toll Free 1-(877) 282-8966 www.capstoneturbine.com SERVICE BULLETIN Wiring Options MicroTurbine Terminals A B C N G ! Neutral to Ground Post Installed 3-wire wye connection Neutral to Ground Post Installed 4-wire wye connection option A Neutral to Ground Post Removed! 4-wire wye connection option B WARNING: A permanent plaque is required to be installed at each MicroTurbine and at each point of utility connection showing all sources of power. A B C N G A B C N G The Neutral to Ground Post (and screw) are installed as shipped. The Post is located behind the neutral busbar in the high voltage side of the User Connection Bay at the rear of the MicroTurbine. 2 480 VAC SB0003 This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. March, 1999 277 VAC 480 VAC 480 VAC 277 VAC 277 VACPDF Image | 400-800 VAC Wye connection required affected all Capstone Micro Turbines
