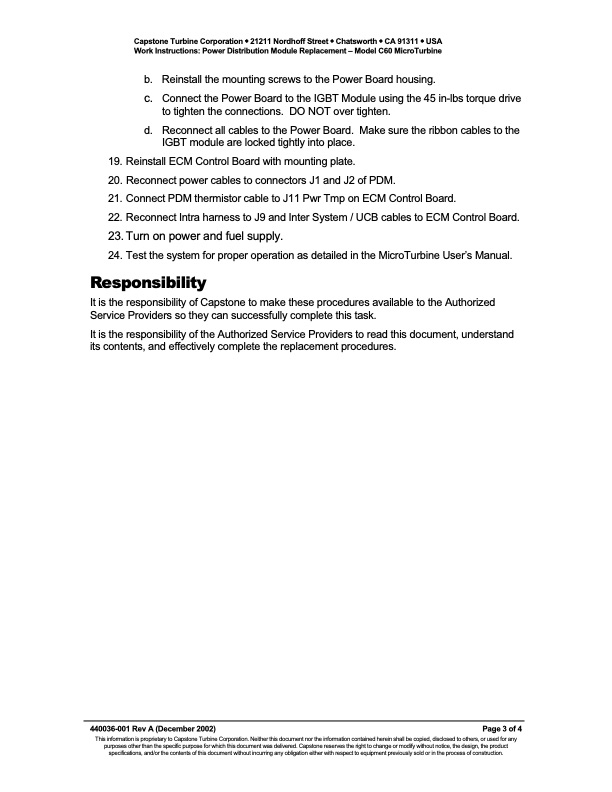

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Work Instructions: Power Distribution Module Replacement – Model C60 MicroTurbine b. Reinstall the mounting screws to the Power Board housing. c. Connect the Power Board to the IGBT Module using the 45 in-lbs torque drive to tighten the connections. DO NOT over tighten. d. Reconnect all cables to the Power Board. Make sure the ribbon cables to the IGBT module are locked tightly into place. 19. Reinstall ECM Control Board with mounting plate. 20. Reconnect power cables to connectors J1 and J2 of PDM. 21. Connect PDM thermistor cable to J11 Pwr Tmp on ECM Control Board. 22. Reconnect Intra harness to J9 and Inter System / UCB cables to ECM Control Board. 23. Turn on power and fuel supply. 24. Test the system for proper operation as detailed in the MicroTurbine User’s Manual. Responsibility It is the responsibility of Capstone to make these procedures available to the Authorized Service Providers so they can successfully complete this task. It is the responsibility of the Authorized Service Providers to read this document, understand its contents, and effectively complete the replacement procedures. 440036-001 Rev A (December 2002) Page 3 of 4 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Work Instructions Power Distribution Module (PDM) Replacement Capstone Model C60 MicroTurbine
