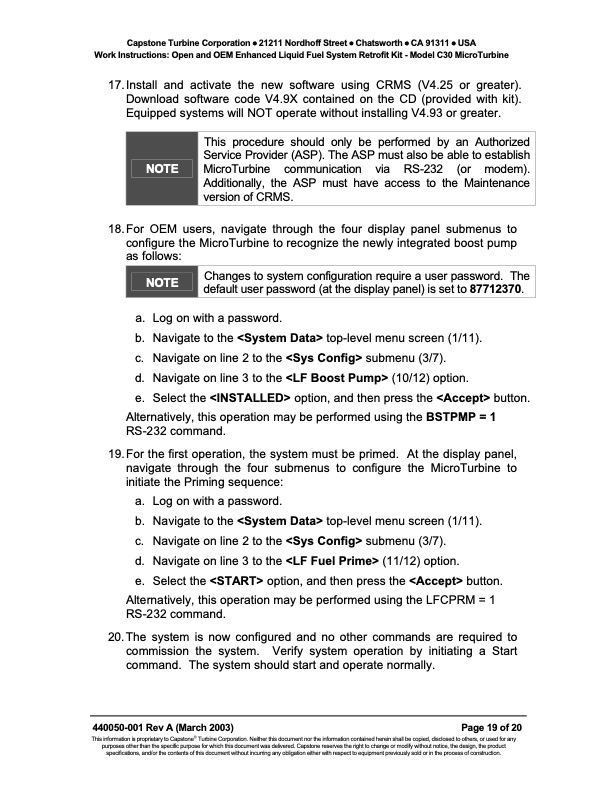

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Work Instructions: Open and OEM Enhanced Liquid Fuel System Retrofit Kit - Model C30 MicroTurbine 17.Install and activate the new software using CRMS (V4.25 or greater). Download software code V4.9X contained on the CD (provided with kit). Equipped systems will NOT operate without installing V4.93 or greater. 18.For OEM users, navigate through the four display panel submenus to configure the MicroTurbine to recognize the newly integrated boost pump as follows: NOTE This procedure should only be performed by an Authorized Service Provider (ASP). The ASP must also be able to establish MicroTurbine communication via RS-232 (or modem). Additionally, the ASP must have access to the Maintenance version of CRMS. NOTE Changes to system configuration require a user password. The default user password (at the display panel) is set to 87712370. a. Logonwithapassword. b. Navigatetothetop-levelmenuscreen(1/11). c. Navigate on line 2 to the submenu (3/7). d. Navigate on line 3 to the (10/12) option. e. Selecttheoption,andthenpressthebutton. Alternatively, this operation may be performed using the BSTPMP = 1 RS-232 command. 19.For the first operation, the system must be primed. At the display panel, navigate through the four submenus to configure the MicroTurbine to initiate the Priming sequence: a. Logonwithapassword. b. Navigatetothetop-levelmenuscreen(1/11). c. Navigate on line 2 to the submenu (3/7). d. Navigate on line 3 to the (11/12) option. e. Selecttheoption,andthenpressthebutton. Alternatively, this operation may be performed using the LFCPRM = 1 RS-232 command. 20.The system is now configured and no other commands are required to commission the system. Verify system operation by initiating a Start command. The system should start and operate normally. 440050-001 Rev A (March 2003) Page 19 of 20 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.
