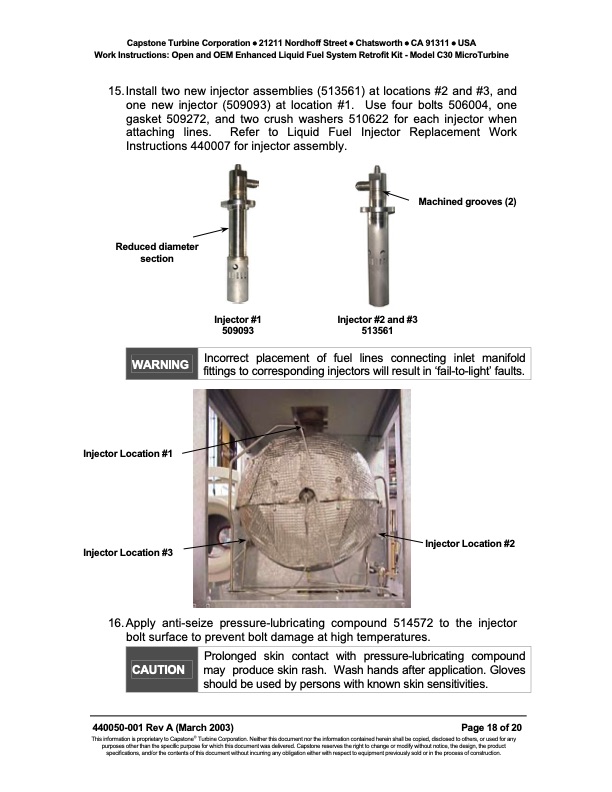

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Work Instructions: Open and OEM Enhanced Liquid Fuel System Retrofit Kit - Model C30 MicroTurbine 15.Install two new injector assemblies (513561) at locations #2 and #3, and one new injector (509093) at location #1. Use four bolts 506004, one gasket 509272, and two crush washers 510622 for each injector when attaching lines. Refer to Liquid Fuel Injector Replacement Work Instructions 440007 for injector assembly. Reduced diameter section Machined grooves (2) WARNING Injector #1 509093 Injector #2 and #3 513561 Incorrect placement of fuel lines connecting inlet manifold fittings to corresponding injectors will result in ‘fail-to-light’ faults. Injector Location #1 Injector Location #3 Injector Location #2 16.Apply anti-seize pressure-lubricating compound 514572 to the injector bolt surface to prevent bolt damage at high temperatures. 440050-001 Rev A (March 2003) Page 18 of 20 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. CAUTION Prolonged skin contact with pressure-lubricating compound may produce skin rash. Wash hands after application. Gloves should be used by persons with known skin sensitivities.PDF Image | Work Instructions Enhanced Liquid Fuel System Retrofit Kit Installation – Open and OEM Package Configurations - Model C30 MicroTurbine Systems
