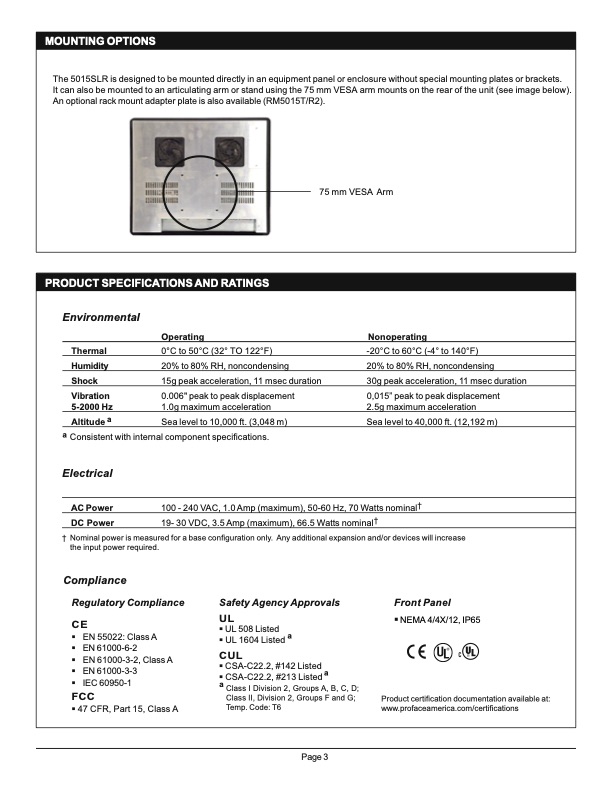

MOUNTING OPTIONS The 5015SLR is designed to be mounted directly in an equipment panel or enclosure without special mounting plates or brackets. It can also be mounted to an articulating arm or stand using the 75 mm VESA arm mounts on the rear of the unit (see image below). An optional rack mount adapter plate is also available (RM5015T/R2). 75 mm VESA Arm PRODUCT SPECIFICATIONS AND RATINGS Environmental Thermal Humidity Shock Vibration 5-2000 Hz Altitude a a Consistent with internal component specifications. Electrical Operating 0°C to 50°C (32° TO 122°F) 20% to 80% RH, noncondensing 15g peak acceleration, 11 msec duration 0.006" peak to peak displacement 1.0g maximum acceleration Nonoperating -20°C to 60°C (-4° to 140°F) 20% to 80% RH, noncondensing 30g peak acceleration, 11 msec duration 0,015” peak to peak displacement 2.5g maximum acceleration Sea level to 40,000 ft. (12,192 m) Sea level to 10,000 ft. (3,048 m) AC Power 100 - 240 VAC, 1.0 Amp (maximum), 50-60 Hz, 70 Watts nominal† DC Power 19- 30 VDC, 3.5 Amp (maximum), 66.5 Watts nominal† † Nominal power is measured for a base configuration only. Any additional expansion and/or devices will increase the input power required. Compliance Regulatory Compliance CE EN 55022: Class A EN 61000-6-2 EN 61000-3-2, Class A EN 61000-3-3 IEC 60950-1 FCC 47 CFR, Part 15, Class A Safety Agency Approvals U L UL 508 Listed a UL 1604 Listed CUL CSA-C22.2, #142 Listed a CSA-C22.2, #213 Listed a Class I Division 2, Groups A, B, C, D; Class II, Division 2, Groups F and G; Temp. Code: T6 Front Panel NEMA 4/4X/12, IP65 Product certification documentation available at: www.profaceamerica.com/certifications Page 3PDF Image | ST PETERSBURG TABLE OF CONTENTS
