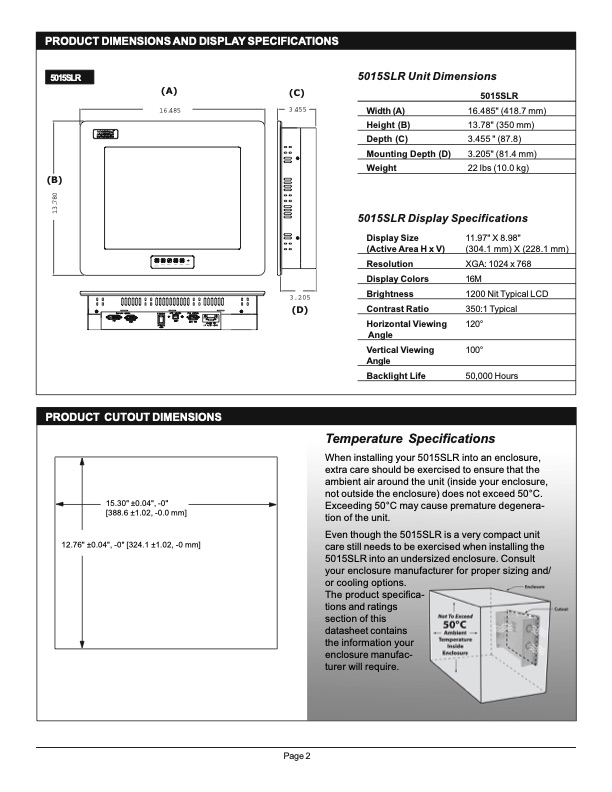

PRODUCT DIMENSIONS AND DISPLAY SPECIFICATIONS 5015SLR 5015SLR Unit Dimensions (A) (C) 5015SLR 16.485" (418.7 mm) 13.78" (350 mm) 3.455 " (87.8) 3.205" (81.4 mm) 22 lbs (10.0 kg) 16.485 3.455 Width (A) Height (B) Depth (C) Mounting Depth (D) Weight (B) 5015SLR Display Specifications LCD AUTO MENU LEFT RIGHT POWER ON/OFF Display Size (Active Area H x V) Resolution Display Colors Brightness 11.97" X 8.98" (304.1 mm) X (228.1 mm) XGA: 1024 x 768 16M 1200 Nit Typical LCD 350:1 Typical 120° 100° 50,000 Hours 3.205 (D) Contrast Ratio Horizontal Viewing Angle Vertical Viewing Angle Backlight Life PRODUCT CUTOUT DIMENSIONS Temperature Specifications When installing your 5015SLR into an enclosure, extra care should be exercised to ensure that the ambient air around the unit (inside your enclosure, not outside the enclosure) does not exceed 50°C. Exceeding 50°C may cause premature degenera- tion of the unit. Even though the 5015SLR is a very compact unit care still needs to be exercised when installing the 5015SLR into an undersized enclosure. Consult your enclosure manufacturer for proper sizing and/ or cooling options. The product specifica- tions and ratings section of this datasheet contains the information your enclosure manufac- turer will require. 15.30" ±0.04", -0" [388.6 ±1.02, -0.0 mm] 12.76" ±0.04", -0" [324.1 ±1.02, -0 mm] Page 2 13.780PDF Image | ST PETERSBURG TABLE OF CONTENTS
