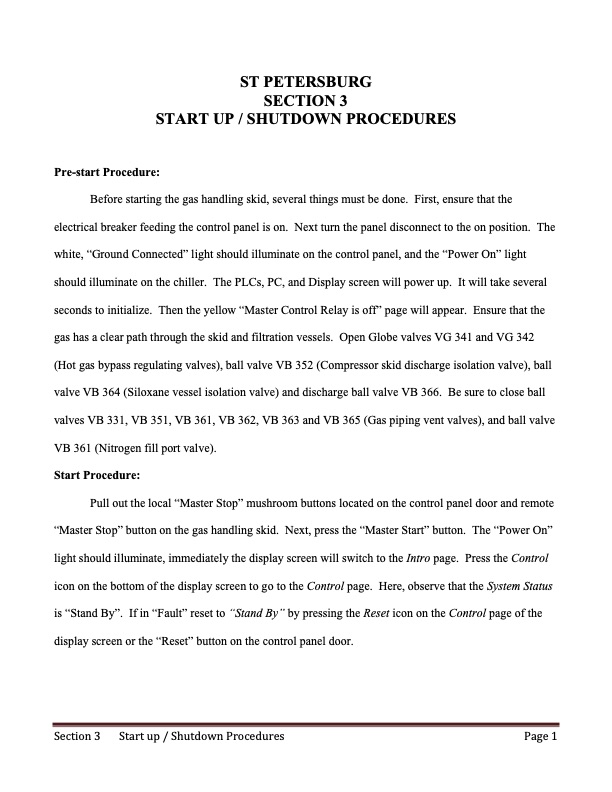

ST PETERSBURG SECTION 3 START UP / SHUTDOWN PROCEDURES Pre-start Procedure: Before starting the gas handling skid, several things must be done. First, ensure that the electrical breaker feeding the control panel is on. Next turn the panel disconnect to the on position. The white, “Ground Connected” light should illuminate on the control panel, and the “Power On” light should illuminate on the chiller. The PLCs, PC, and Display screen will power up. It will take several seconds to initialize. Then the yellow “Master Control Relay is off” page will appear. Ensure that the gas has a clear path through the skid and filtration vessels. Open Globe valves VG 341 and VG 342 (Hot gas bypass regulating valves), ball valve VB 352 (Compressor skid discharge isolation valve), ball valve VB 364 (Siloxane vessel isolation valve) and discharge ball valve VB 366. Be sure to close ball valves VB 331, VB 351, VB 361, VB 362, VB 363 and VB 365 (Gas piping vent valves), and ball valve VB 361 (Nitrogen fill port valve). Start Procedure: Pull out the local “Master Stop” mushroom buttons located on the control panel door and remote “Master Stop” button on the gas handling skid. Next, press the “Master Start” button. The “Power On” light should illuminate, immediately the display screen will switch to the Intro page. Press the Control icon on the bottom of the display screen to go to the Control page. Here, observe that the System Status is “Stand By”. If in “Fault” reset to “Stand By” by pressing the Reset icon on the Control page of the display screen or the “Reset” button on the control panel door. Section 3 Start up / Shutdown Procedures Page 1PDF Image | ST PETERSBURG TABLE OF CONTENTS
