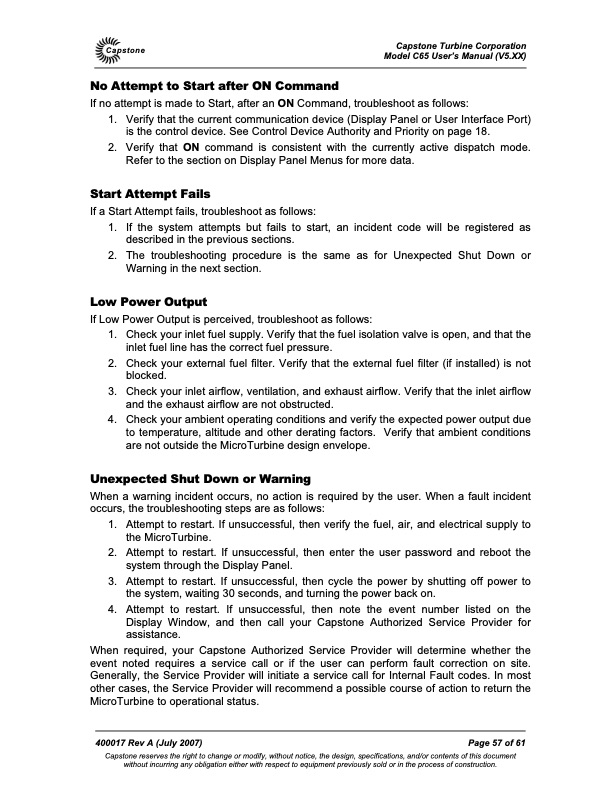

Capstone No Attempt to Start after ON Command Capstone Turbine Corporation Model C65 User’s Manual (V5.XX) If no attempt is made to Start, after an ON Command, troubleshoot as follows: 1. Verify that the current communication device (Display Panel or User Interface Port) is the control device. See Control Device Authority and Priority on page 18. 2. Verify that ON command is consistent with the currently active dispatch mode. Refer to the section on Display Panel Menus for more data. Start Attempt Fails If a Start Attempt fails, troubleshoot as follows: 1. If the system attempts but fails to start, an incident code will be registered as described in the previous sections. 2. The troubleshooting procedure is the same as for Unexpected Shut Down or Warning in the next section. Low Power Output If Low Power Output is perceived, troubleshoot as follows: 1. Check your inlet fuel supply. Verify that the fuel isolation valve is open, and that the inlet fuel line has the correct fuel pressure. 2. Check your external fuel filter. Verify that the external fuel filter (if installed) is not blocked. 3. Check your inlet airflow, ventilation, and exhaust airflow. Verify that the inlet airflow and the exhaust airflow are not obstructed. 4. Check your ambient operating conditions and verify the expected power output due to temperature, altitude and other derating factors. Verify that ambient conditions are not outside the MicroTurbine design envelope. Unexpected Shut Down or Warning When a warning incident occurs, no action is required by the user. When a fault incident occurs, the troubleshooting steps are as follows: 1. Attempt to restart. If unsuccessful, then verify the fuel, air, and electrical supply to the MicroTurbine. 2. Attempt to restart. If unsuccessful, then enter the user password and reboot the system through the Display Panel. 3. Attempt to restart. If unsuccessful, then cycle the power by shutting off power to the system, waiting 30 seconds, and turning the power back on. 4. Attempt to restart. If unsuccessful, then note the event number listed on the Display Window, and then call your Capstone Authorized Service Provider for assistance. When required, your Capstone Authorized Service Provider will determine whether the event noted requires a service call or if the user can perform fault correction on site. Generally, the Service Provider will initiate a service call for Internal Fault codes. In most other cases, the Service Provider will recommend a possible course of action to return the MicroTurbine to operational status. 400017 Rev A (July 2007) Page 57 of 61 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | C65 5xx
