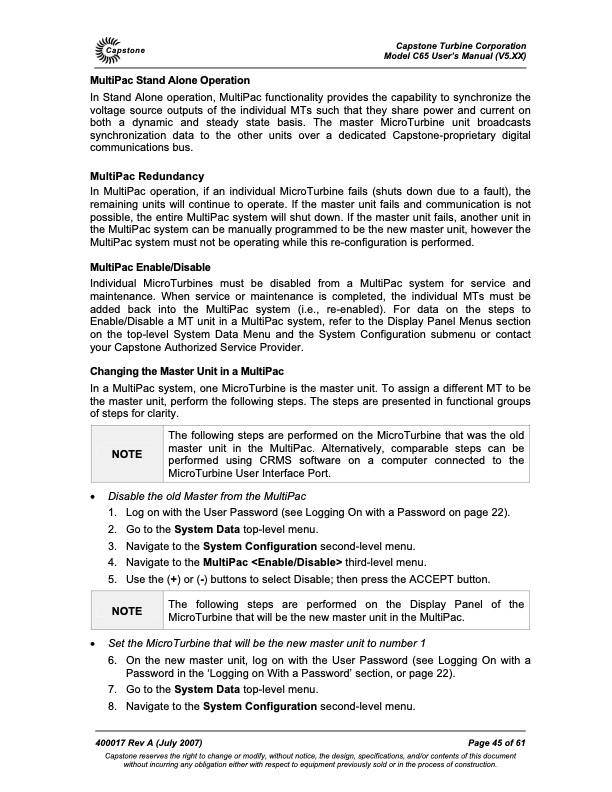

Text from PDF Page: 045

Capstone MultiPac Stand Alone Operation Capstone Turbine Corporation Model C65 User’s Manual (V5.XX) In Stand Alone operation, MultiPac functionality provides the capability to synchronize the voltage source outputs of the individual MTs such that they share power and current on both a dynamic and steady state basis. The master MicroTurbine unit broadcasts synchronization data to the other units over a dedicated Capstone-proprietary digital communications bus. MultiPac Redundancy In MultiPac operation, if an individual MicroTurbine fails (shuts down due to a fault), the remaining units will continue to operate. If the master unit fails and communication is not possible, the entire MultiPac system will shut down. If the master unit fails, another unit in the MultiPac system can be manually programmed to be the new master unit, however the MultiPac system must not be operating while this re-configuration is performed. MultiPac Enable/Disable Individual MicroTurbines must be disabled from a MultiPac system for service and maintenance. When service or maintenance is completed, the individual MTs must be added back into the MultiPac system (i.e., re-enabled). For data on the steps to Enable/Disable a MT unit in a MultiPac system, refer to the Display Panel Menus section on the top-level System Data Menu and the System Configuration submenu or contact your Capstone Authorized Service Provider. Changing the Master Unit in a MultiPac In a MultiPac system, one MicroTurbine is the master unit. To assign a different MT to be the master unit, perform the following steps. The steps are presented in functional groups of steps for clarity. • Disable the old Master from the MultiPac 1. Log on with the User Password (see Logging On with a Password on page 22). 2. Go to the System Data top-level menu. 3. Navigate to the System Configuration second-level menu. 4. Navigate to the MultiPac third-level menu. 5. Use the (+) or (-) buttons to select Disable; then press the ACCEPT button. The following steps are performed on the Display Panel of the MicroTurbine that will be the new master unit in the MultiPac. • Set the MicroTurbine that will be the new master unit to number 1 6. On the new master unit, log on with the User Password (see Logging On with a Password in the ‘Logging on With a Password’ section, or page 22). 7. Go to the System Data top-level menu. 8. Navigate to the System Configuration second-level menu. 400017 Rev A (July 2007) Page 45 of 61 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. NOTE The following steps are performed on the MicroTurbine that was the old master unit in the MultiPac. Alternatively, comparable steps can be performed using CRMS software on a computer connected to the MicroTurbine User Interface Port. NOTE
