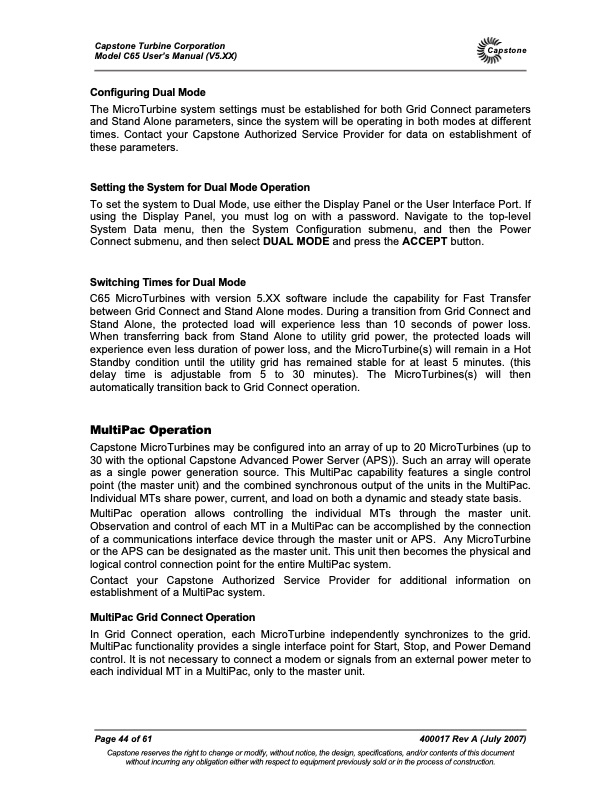

Capstone Turbine Corporation Model C65 User’s Manual (V5.XX) Configuring Dual Mode Capstone The MicroTurbine system settings must be established for both Grid Connect parameters and Stand Alone parameters, since the system will be operating in both modes at different times. Contact your Capstone Authorized Service Provider for data on establishment of these parameters. Setting the System for Dual Mode Operation To set the system to Dual Mode, use either the Display Panel or the User Interface Port. If using the Display Panel, you must log on with a password. Navigate to the top-level System Data menu, then the System Configuration submenu, and then the Power Connect submenu, and then select DUAL MODE and press the ACCEPT button. Switching Times for Dual Mode C65 MicroTurbines with version 5.XX software include the capability for Fast Transfer between Grid Connect and Stand Alone modes. During a transition from Grid Connect and Stand Alone, the protected load will experience less than 10 seconds of power loss. When transferring back from Stand Alone to utility grid power, the protected loads will experience even less duration of power loss, and the MicroTurbine(s) will remain in a Hot Standby condition until the utility grid has remained stable for at least 5 minutes. (this delay time is adjustable from 5 to 30 minutes). The MicroTurbines(s) will then automatically transition back to Grid Connect operation. MultiPac Operation Capstone MicroTurbines may be configured into an array of up to 20 MicroTurbines (up to 30 with the optional Capstone Advanced Power Server (APS)). Such an array will operate as a single power generation source. This MultiPac capability features a single control point (the master unit) and the combined synchronous output of the units in the MultiPac. Individual MTs share power, current, and load on both a dynamic and steady state basis. MultiPac operation allows controlling the individual MTs through the master unit. Observation and control of each MT in a MultiPac can be accomplished by the connection of a communications interface device through the master unit or APS. Any MicroTurbine or the APS can be designated as the master unit. This unit then becomes the physical and logical control connection point for the entire MultiPac system. Contact your Capstone Authorized Service Provider for additional information on establishment of a MultiPac system. MultiPac Grid Connect Operation In Grid Connect operation, each MicroTurbine independently synchronizes to the grid. MultiPac functionality provides a single interface point for Start, Stop, and Power Demand control. It is not necessary to connect a modem or signals from an external power meter to each individual MT in a MultiPac, only to the master unit. Page 44 of 61 400017 Rev A (July 2007) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | C65 5xx
