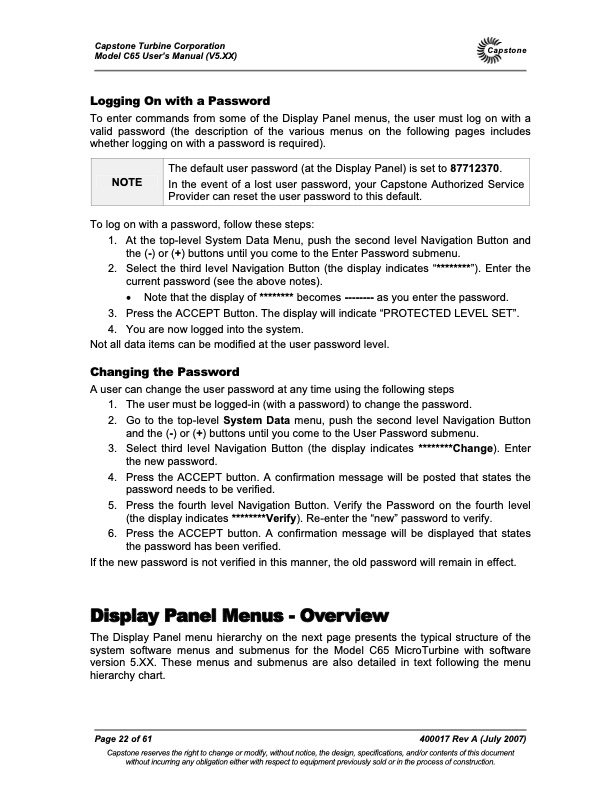

Capstone Turbine Corporation Model C65 User’s Manual (V5.XX) Logging On with a Password Capstone To enter commands from some of the Display Panel menus, the user must log on with a valid password (the description of the various menus on the following pages includes whether logging on with a password is required). To log on with a password, follow these steps: 1. At the top-level System Data Menu, push the second level Navigation Button and the (-) or (+) buttons until you come to the Enter Password submenu. 2. Select the third level Navigation Button (the display indicates “********”). Enter the current password (see the above notes). • Note that the display of ******** becomes -------- as you enter the password. 3. Press the ACCEPT Button. The display will indicate “PROTECTED LEVEL SET”. 4. You are now logged into the system. Not all data items can be modified at the user password level. Changing the Password A user can change the user password at any time using the following steps 1. The user must be logged-in (with a password) to change the password. 2. Go to the top-level System Data menu, push the second level Navigation Button and the (-) or (+) buttons until you come to the User Password submenu. 3. Select third level Navigation Button (the display indicates ********Change). Enter the new password. 4. Press the ACCEPT button. A confirmation message will be posted that states the password needs to be verified. 5. Press the fourth level Navigation Button. Verify the Password on the fourth level (the display indicates ********Verify). Re-enter the “new” password to verify. 6. Press the ACCEPT button. A confirmation message will be displayed that states the password has been verified. If the new password is not verified in this manner, the old password will remain in effect. Display Panel Menus - Overview The Display Panel menu hierarchy on the next page presents the typical structure of the system software menus and submenus for the Model C65 MicroTurbine with software version 5.XX. These menus and submenus are also detailed in text following the menu hierarchy chart. Page 22 of 61 400017 Rev A (July 2007) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. NOTE The default user password (at the Display Panel) is set to 87712370. In the event of a lost user password, your Capstone Authorized Service Provider can reset the user password to this default.PDF Image | C65 5xx
