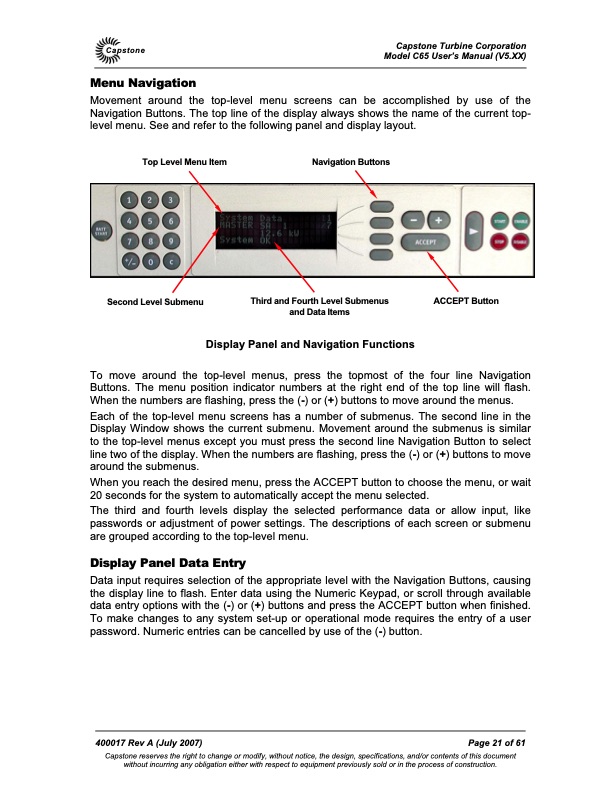

Capstone Menu Navigation Capstone Turbine Corporation Model C65 User’s Manual (V5.XX) Movement around the top-level menu screens can be accomplished by use of the Navigation Buttons. The top line of the display always shows the name of the current top- level menu. See and refer to the following panel and display layout. Top Level Menu Item Navigation Buttons Third and Fourth Level Submenus and Data Items Second Level Submenu Display Panel and Navigation Functions To move around the top-level menus, press the topmost of the four line Navigation Buttons. The menu position indicator numbers at the right end of the top line will flash. When the numbers are flashing, press the (-) or (+) buttons to move around the menus. Each of the top-level menu screens has a number of submenus. The second line in the Display Window shows the current submenu. Movement around the submenus is similar to the top-level menus except you must press the second line Navigation Button to select line two of the display. When the numbers are flashing, press the (-) or (+) buttons to move around the submenus. When you reach the desired menu, press the ACCEPT button to choose the menu, or wait 20 seconds for the system to automatically accept the menu selected. The third and fourth levels display the selected performance data or allow input, like passwords or adjustment of power settings. The descriptions of each screen or submenu are grouped according to the top-level menu. Display Panel Data Entry Data input requires selection of the appropriate level with the Navigation Buttons, causing the display line to flash. Enter data using the Numeric Keypad, or scroll through available data entry options with the (-) or (+) buttons and press the ACCEPT button when finished. To make changes to any system set-up or operational mode requires the entry of a user password. Numeric entries can be cancelled by use of the (-) button. 400017 Rev A (July 2007) Page 21 of 61 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. ACCEPT ButtonPDF Image | C65 5xx
