Text from PDF Page: 026

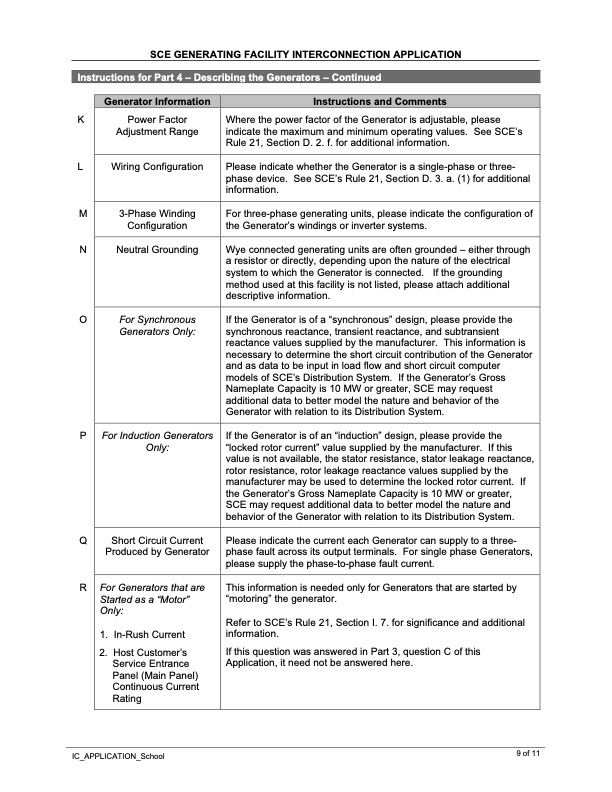

SCE GENERATING FACILITY INTERCONNECTION APPLICATION Instructions for Part 4 – Describing the Generators – Continued Generator Information Instructions and Comments Power Factor Adjustment Range Where the power factor of the Generator is adjustable, please indicate the maximum and minimum operating values. See SCE’s Rule 21, Section D. 2. f. for additional information. Wiring Configuration Please indicate whether the Generator is a single-phase or three- phase device. See SCE’s Rule 21, Section D. 3. a. (1) for additional information. K L M 3-Phase Winding Configuration N O P Q R For three-phase generating units, please indicate the configuration of the Generator’s windings or inverter systems. Neutral Grounding Wye connected generating units are often grounded – either through a resistor or directly, depending upon the nature of the electrical system to which the Generator is connected. If the grounding method used at this facility is not listed, please attach additional descriptive information. For Synchronous Generators Only: If the Generator is of a “synchronous” design, please provide the synchronous reactance, transient reactance, and subtransient reactance values supplied by the manufacturer. This information is necessary to determine the short circuit contribution of the Generator and as data to be input in load flow and short circuit computer models of SCE’s Distribution System. If the Generator’s Gross Nameplate Capacity is 10 MW or greater, SCE may request additional data to better model the nature and behavior of the Generator with relation to its Distribution System. For Induction Generators Only: If the Generator is of an “induction” design, please provide the “locked rotor current” value supplied by the manufacturer. If this value is not available, the stator resistance, stator leakage reactance, rotor resistance, rotor leakage reactance values supplied by the manufacturer may be used to determine the locked rotor current. If the Generator’s Gross Nameplate Capacity is 10 MW or greater, SCE may request additional data to better model the nature and behavior of the Generator with relation to its Distribution System. Short Circuit Current Produced by Generator Please indicate the current each Generator can supply to a three- phase fault across its output terminals. For single phase Generators, please supply the phase-to-phase fault current. For Generators that are Started as a “Motor” Only: 1. In-Rush Current 2. Host Customer’s Service Entrance Panel (Main Panel) Continuous Current Rating This information is needed only for Generators that are started by “motoring” the generator. Refer to SCE’s Rule 21, Section I. 7. for significance and additional information. If this question was answered in Part 3, question C of this Application, it need not be answered here. IC_APPLICATION_School 9 of 11PDF Image | Application Guide Interconnection for Capstone MicroTurbines
