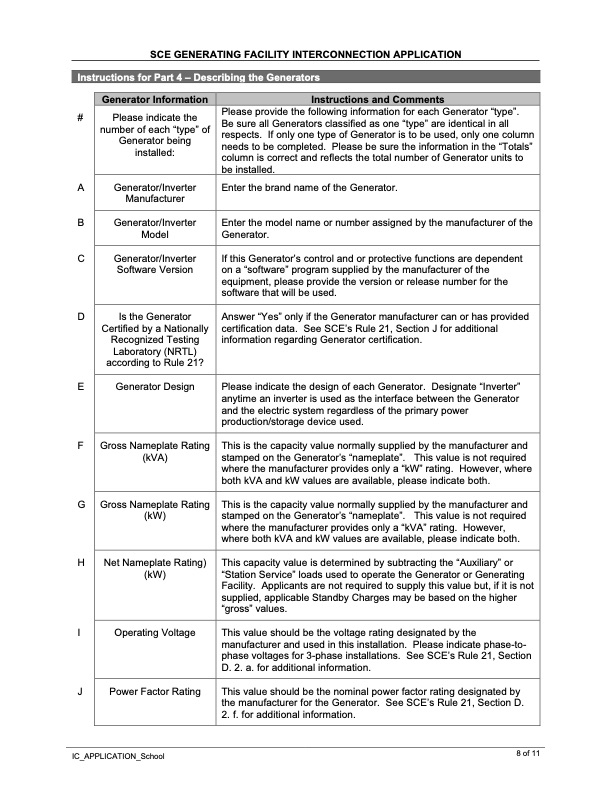

# A Generator/Inverter Manufacturer B Generator/Inverter Model C D E F G H I J Enter the brand name of the Generator. Enter the model name or number assigned by the manufacturer of the Generator. SCE GENERATING FACILITY INTERCONNECTION APPLICATION Instructions for Part 4 – Describing the Generators Generator Information Instructions and Comments Please indicate the number of each “type” of Generator being installed: Please provide the following information for each Generator “type”. Be sure all Generators classified as one “type” are identical in all respects. If only one type of Generator is to be used, only one column needs to be completed. Please be sure the information in the “Totals” column is correct and reflects the total number of Generator units to be installed. Generator/Inverter Software Version If this Generator’s control and or protective functions are dependent on a “software” program supplied by the manufacturer of the equipment, please provide the version or release number for the software that will be used. Is the Generator Certified by a Nationally Recognized Testing Laboratory (NRTL) according to Rule 21? Answer “Yes” only if the Generator manufacturer can or has provided certification data. See SCE’s Rule 21, Section J for additional information regarding Generator certification. Generator Design Please indicate the design of each Generator. Designate “Inverter” anytime an inverter is used as the interface between the Generator and the electric system regardless of the primary power production/storage device used. Gross Nameplate Rating (kVA) This is the capacity value normally supplied by the manufacturer and stamped on the Generator’s “nameplate”. This value is not required where the manufacturer provides only a “kW” rating. However, where both kVA and kW values are available, please indicate both. Gross Nameplate Rating (kW) This is the capacity value normally supplied by the manufacturer and stamped on the Generator’s “nameplate”. This value is not required where the manufacturer provides only a “kVA” rating. However, where both kVA and kW values are available, please indicate both. Net Nameplate Rating) (kW) This capacity value is determined by subtracting the “Auxiliary” or “Station Service” loads used to operate the Generator or Generating Facility. Applicants are not required to supply this value but, if it is not supplied, applicable Standby Charges may be based on the higher “gross” values. Operating Voltage This value should be the voltage rating designated by the manufacturer and used in this installation. Please indicate phase-to- phase voltages for 3-phase installations. See SCE’s Rule 21, Section D. 2. a. for additional information. Power Factor Rating This value should be the nominal power factor rating designated by the manufacturer for the Generator. See SCE’s Rule 21, Section D. 2. f. for additional information. IC_APPLICATION_School 8 of 11PDF Image | Application Guide Interconnection for Capstone MicroTurbines
