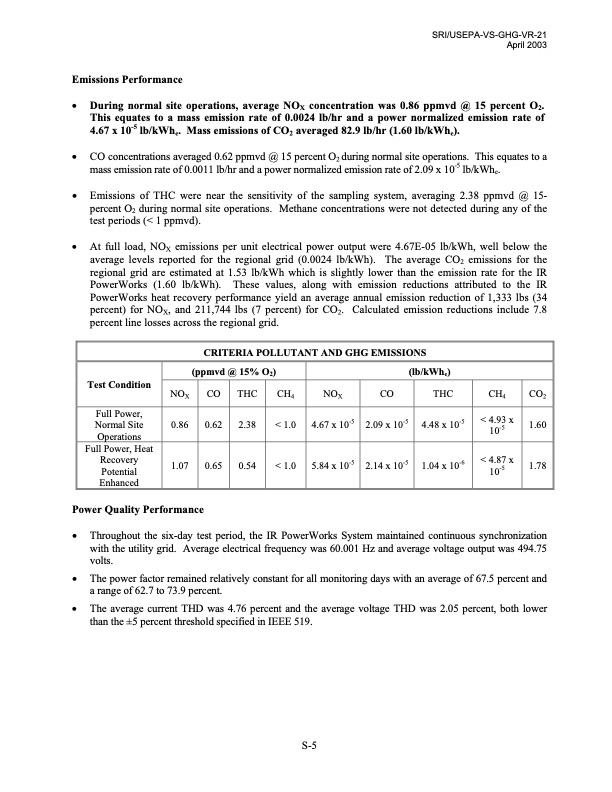

Emissions Performance • During normal site operations, average NOX concentration was 0.86 ppmvd @ 15 percent O2. This equates to a mass emission rate of 0.0024 lb/hr and a power normalized emission rate of 4.67 x 10-5 lb/kWhe. Mass emissions of CO2 averaged 82.9 lb/hr (1.60 lb/kWhe). • CO concentrations averaged 0.62 ppmvd @ 15 percent O2 during normal site operations. This equates to a mass emission rate of 0.0011 lb/hr and a power normalized emission rate of 2.09 x 10-5 lb/kWhe. • Emissions of THC were near the sensitivity of the sampling system, averaging 2.38 ppmvd @ 15 percent O2 during normal site operations. Methane concentrations were not detected during any of the test periods (< 1 ppmvd). • At full load, NOX emissions per unit electrical power output were 4.67E-05 lb/kWh, well below the average levels reported for the regional grid (0.0024 lb/kWh). The average CO2 emissions for the regional grid are estimated at 1.53 lb/kWh which is slightly lower than the emission rate for the IR PowerWorks (1.60 lb/kWh). These values, along with emission reductions attributed to the IR PowerWorks heat recovery performance yield an average annual emission reduction of 1,333 lbs (34 percent) for NOX, and 211,744 lbs (7 percent) for CO2. Calculated emission reductions include 7.8 percent line losses across the regional grid. Test Condition Full Power, Normal Site Operations NOX CO THC 0.86 0.62 2.38 CH4 NOX < 1.0 4.67 x 10 -5 CO 2.09 x 10 -5 -5 CH4 CO2 < 4.93 x 10-5 1.60 SRI/USEPA-VS-GHG-VR-21 April 2003 CRITERIA POLLUTANT AND GHG EMISSIONS (ppmvd @ 15% O2) (lb/kWhe) THC 4.48 x 10 Full Power, Heat Recovery Potential Enhanced 1.07 0.65 0.54 < 1.0 5.84 x 10-5 2.14 x 10-5 1.04 x 10-6 < 4.87 x 10-5 1.78 Power Quality Performance • Throughout the six-day test period, the IR PowerWorks System maintained continuous synchronization with the utility grid. Average electrical frequency was 60.001 Hz and average voltage output was 494.75 volts. • The power factor remained relatively constant for all monitoring days with an average of 67.5 percent and a range of 62.7 to 73.9 percent. • The average current THD was 4.76 percent and the average voltage THD was 2.05 percent, both lower than the ±5 percent threshold specified in IEEE 519. S-5PDF Image | THE ENVIRONMENTAL TECHNOLOGY VERIFICATION PROGRAM
