PDF Publication Title:
Text from PDF Page: 101

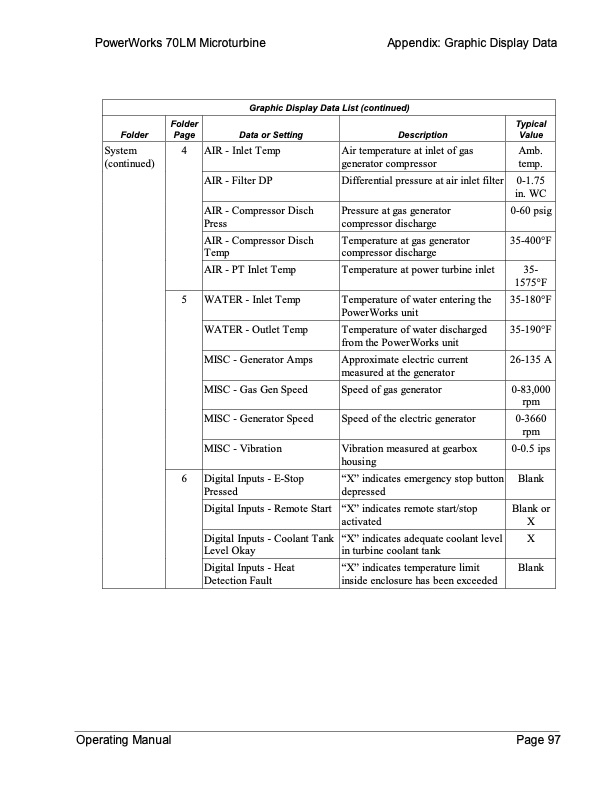

PowerWorks 70LM Microturbine Appendix: Graphic Display Data Graphic Display Data List (continued) Folder Folder Page System 4 (continued) AIR - AIR - AIR - Press AIR - Temp Data or Setting Inlet Temp Filter DP Compressor Disch Compressor Disch PT Inlet Temp Description Air temperature at inlet of gas generator compressor Differential pressure at air inlet filter Pressure at gas generator compressor discharge Temperature at gas generator compressor discharge Temperature at power turbine inlet Temperature of water entering the PowerWorks unit Temperature of water discharged from the PowerWorks unit Approximate electric current measured at the generator Speed of gas generator Speed of the electric generator Vibration measured at gearbox housing “X” indicates emergency stop button depressed “X” indicates remote start/stop activated “X” indicates adequate coolant level in turbine coolant tank “X” indicates temperature limit inside enclosure has been exceeded Typical Value Amb. temp. 0-1.75 in. WC 0-60 psig 35-400°F 35- 1575°F 35-180°F 35-190°F 26-135 A 0-83,000 rpm 0-3660 rpm 0-0.5 ips Blank Blank or X X Blank 5 AIR - WATER - Inlet Temp WATER - Outlet Temp MISC - Generator Amps MISC - Gas Gen Speed MISC - Generator Speed MISC - Vibration 6 Digital Inputs - Pressed Digital Inputs - Digital Inputs - Level Okay Digital Inputs - Detection Fault E-Stop Remote Start Coolant Tank Heat Operating Manual Page 97PDF Image | 70LM Microturbine Operating Manual
