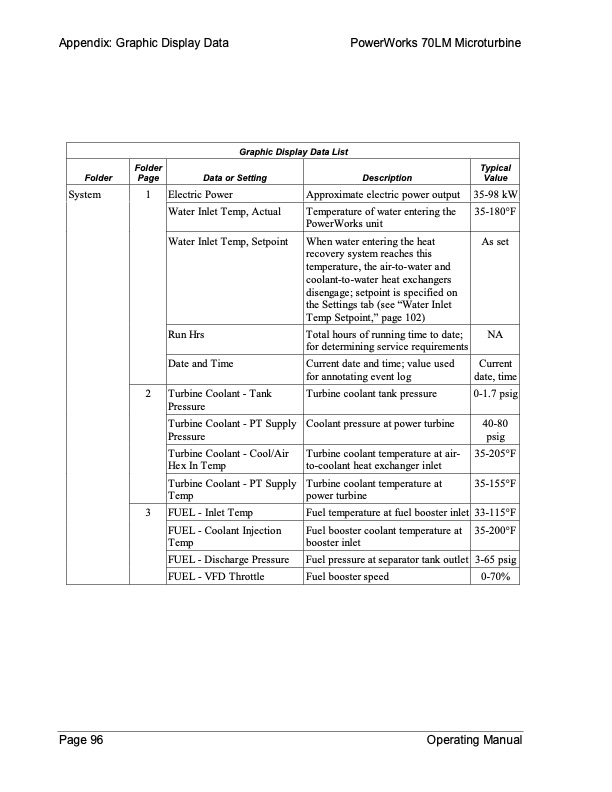

Appendix: Graphic Display Data PowerWorks 70LM Microturbine Graphic Display Data List Page Data or Setting Typical Value 35-98 kW 35-180°F NA Current date, time 0-1.7 psig 40-80 psig 35-205°F 35-155°F 33-115°F 35-200°F 3-65 psig 0-70% Folder System Description Folder 1 Electric Power Water Inlet Temp, Actual Run Hrs Date and Time 2 Turbine Coolant - Tank Pressure Turbine Coolant - PT Supply Pressure Turbine Coolant - Cool/Air Hex In Temp Turbine Coolant - PT Supply Temp 3 FUEL - Inlet Temp FUEL - Coolant Injection Temp FUEL - Discharge Pressure FUEL - VFD Throttle Approximate electric power output Temperature of water entering the PowerWorks unit Total hours of running time to date; for determining service requirements Current date and time; value used for annotating event log Turbine coolant tank pressure Coolant pressure at power turbine Turbine coolant temperature at air- to-coolant heat exchanger inlet Turbine coolant temperature at power turbine Fuel temperature at fuel booster inlet Fuel booster coolant temperature at booster inlet Fuel pressure at separator tank outlet Fuel booster speed Water Inlet Temp, Setpoint When water entering the heat recovery system reaches this temperature, the air-to-water and coolant-to-water heat exchangers disengage; setpoint is specified on the Settings tab (see “Water Inlet Temp Setpoint,” page 102) As set Page 96 Operating ManualPDF Image | 70LM Microturbine Operating Manual
