PDF Publication Title:
Text from PDF Page: 096

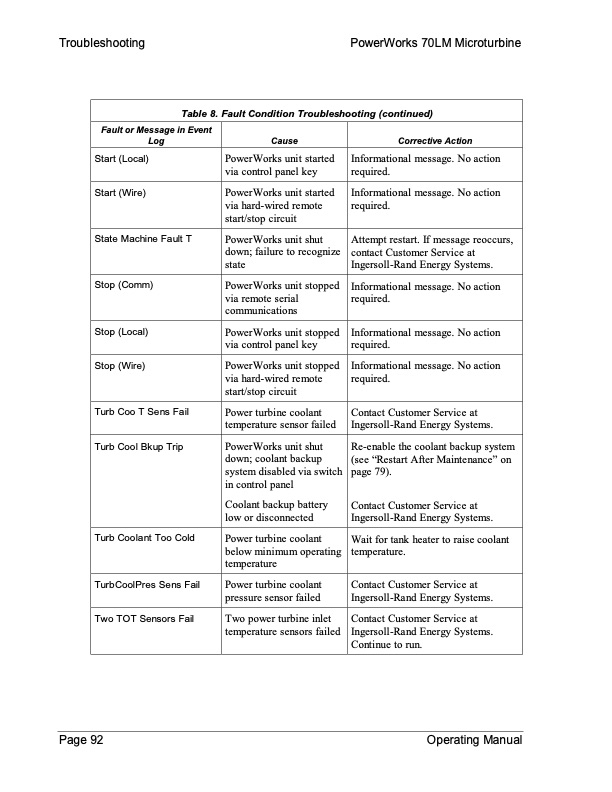

Troubleshooting PowerWorks 70LM Microturbine Table 8. Fault Condition Troubleshooting (continued) Fault or Message in Event Log Start (Local) Cause PowerWorks unit started via control panel key Corrective Action Informational message. No action required. Start (Wire) PowerWorks unit started via hard-wired remote start/stop circuit Informational message. No action required. State Machine Fault T PowerWorks unit shut down; failure to recognize state Attempt restart. If message reoccurs, contact Customer Service at Ingersoll-Rand Energy Systems. Stop (Comm) PowerWorks unit stopped via remote serial communications Informational message. No action required. Stop (Local) Turb Coo T Sens Fail PowerWorks unit stopped via control panel key Power turbine coolant temperature sensor failed Informational message. No action required. Contact Customer Service at Ingersoll-Rand Energy Systems. Stop (Wire) PowerWorks unit stopped via hard-wired remote start/stop circuit Informational message. No action required. Turb Cool Bkup Trip PowerWorks unit shut down; coolant backup system disabled via switch in control panel Coolant backup battery low or disconnected Re-enable the coolant backup system (see “Restart After Maintenance” on page 79). Contact Customer Service at Ingersoll-Rand Energy Systems. Turb Coolant Too Cold Power turbine coolant below minimum operating temperature Wait for tank heater to raise coolant temperature. TurbCoolPres Sens Fail Power turbine coolant pressure sensor failed Contact Customer Service at Ingersoll-Rand Energy Systems. Two TOT Sensors Fail Two power turbine inlet temperature sensors failed Contact Customer Service at Ingersoll-Rand Energy Systems. Continue to run. Page 92 Operating ManualPDF Image | 70LM Microturbine Operating Manual
PDF Search Title:
70LM Microturbine Operating ManualOriginal File Name Searched:
Ingersoll_rand_powerworks_70lm_operating_manual_.pdfDIY PDF Search: Google It | Yahoo | Bing
