PDF Publication Title:
Text from PDF Page: 095

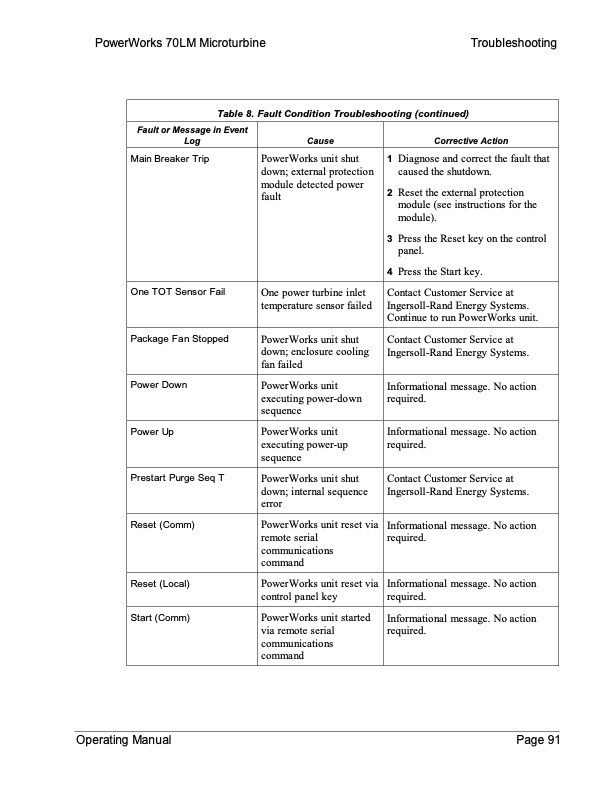

PowerWorks 70LM Microturbine Troubleshooting Table 8. Fault Condition Troubleshooting (continued) Fault or Message in Event Log Cause Corrective Action Main Breaker Trip PowerWorks unit shut down; external protection module detected power fault 1 Diagnose and correct the fault that caused the shutdown. 2 Reset the external protection module (see instructions for the module). 3 Press the Reset key on the control panel. 4 Press the Start key. One TOT Sensor Fail One power turbine inlet temperature sensor failed Contact Customer Service at Ingersoll-Rand Energy Systems. Continue to run PowerWorks unit. Package Fan Stopped PowerWorks unit shut down; enclosure cooling fan failed Contact Customer Service at Ingersoll-Rand Energy Systems. Power Down PowerWorks unit executing power-down sequence Informational message. No action required. Power Up PowerWorks unit executing power-up sequence Informational message. No action required. Prestart Purge Seq T PowerWorks unit shut down; internal sequence error Contact Customer Service at Ingersoll-Rand Energy Systems. Reset (Comm) PowerWorks unit reset via remote serial communications comma nd Informational message. No action required. Reset (Local) PowerWorks unit reset via control panel key Informational message. No action required. Start (Comm) PowerWorks unit started via remote serial communications comma nd Informational message. No action required. Operating Manual Page 91PDF Image | 70LM Microturbine Operating Manual
PDF Search Title:
70LM Microturbine Operating ManualOriginal File Name Searched:
Ingersoll_rand_powerworks_70lm_operating_manual_.pdfDIY PDF Search: Google It | Yahoo | Bing
