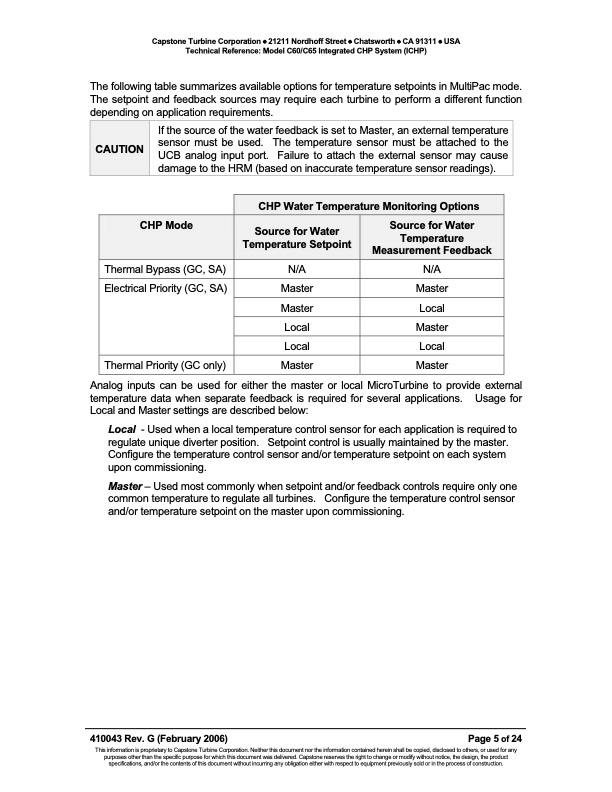

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Model C60/C65 Integrated CHP System (ICHP) The following table summarizes available options for temperature setpoints in MultiPac mode. The setpoint and feedback sources may require each turbine to perform a different function depending on application requirements. CAUTION If the source of the water feedback is set to Master, an external temperature sensor must be used. The temperature sensor must be attached to the UCB analog input port. Failure to attach the external sensor may cause damage to the HRM (based on inaccurate temperature sensor readings). CHP Water Temperature Monitoring Options CHP Mode Source for Water Temperature Setpoint Source for Water Temperature Measurement Feedback Thermal Bypass (GC, SA) Electrical Priority (GC, SA) Thermal Priority (GC only) N/A Master Master Local Local Master N/A Master Local Master Local Master Analog inputs can be used for either the master or local MicroTurbine to provide external temperature data when separate feedback is required for several applications. Usage for Local and Master settings are described below: Local - Used when a local temperature control sensor for each application is required to regulate unique diverter position. Setpoint control is usually maintained by the master. Configure the temperature control sensor and/or temperature setpoint on each system upon commissioning. Master – Used most commonly when setpoint and/or feedback controls require only one common temperature to regulate all turbines. Configure the temperature control sensor and/or temperature setpoint on the master upon commissioning. 410043 Rev. G (February 2006) Page 5 of 24 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Model C60/C65Integrated CHP System (ICHP)
