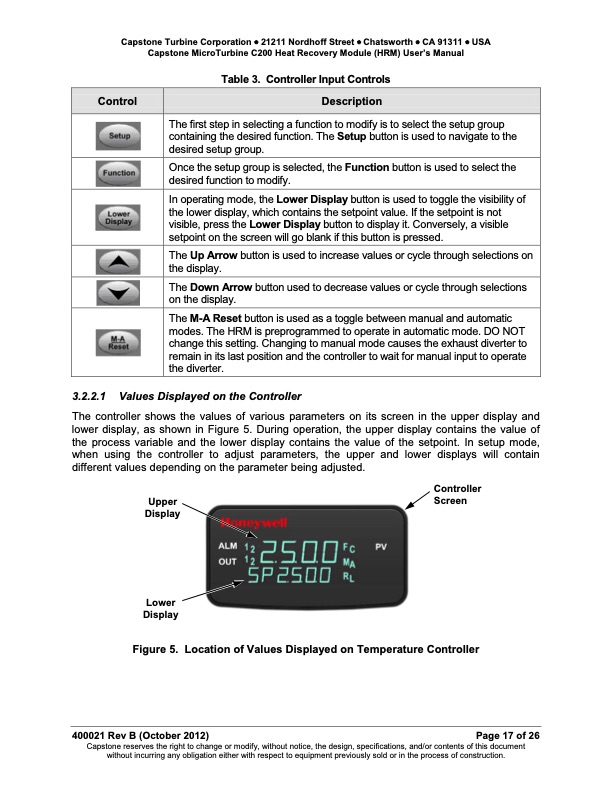

Control Table 3. Controller Input Controls Description Once the setup group is selected, the Function button is used to select the desired function to modify. The Up Arrow button is used to increase values or cycle through selections on the display. The Down Arrow button used to decrease values or cycle through selections on the display. Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone MicroTurbine C200 Heat Recovery Module (HRM) User’s Manual The first step in selecting a function to modify is to select the setup group containing the desired function. The Setup button is used to navigate to the desired setup group. In operating mode, the Lower Display button is used to toggle the visibility of the lower display, which contains the setpoint value. If the setpoint is not visible, press the Lower Display button to display it. Conversely, a visible setpoint on the screen will go blank if this button is pressed. The M-A Reset button is used as a toggle between manual and automatic modes. The HRM is preprogrammed to operate in automatic mode. DO NOT change this setting. Changing to manual mode causes the exhaust diverter to remain in its last position and the controller to wait for manual input to operate the diverter. 3.2.2.1 Values Displayed on the Controller The controller shows the values of various parameters on its screen in the upper display and lower display, as shown in Figure 5. During operation, the upper display contains the value of the process variable and the lower display contains the value of the setpoint. In setup mode, when using the controller to adjust parameters, the upper and lower displays will contain different values depending on the parameter being adjusted. Upper Display Lower Display Controller Screen Figure 5. Location of Values Displayed on Temperature Controller 400021 Rev B (October 2012) Page 17 of 26 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine C200 Heat Recovery Module (HRM) User’s Manual
