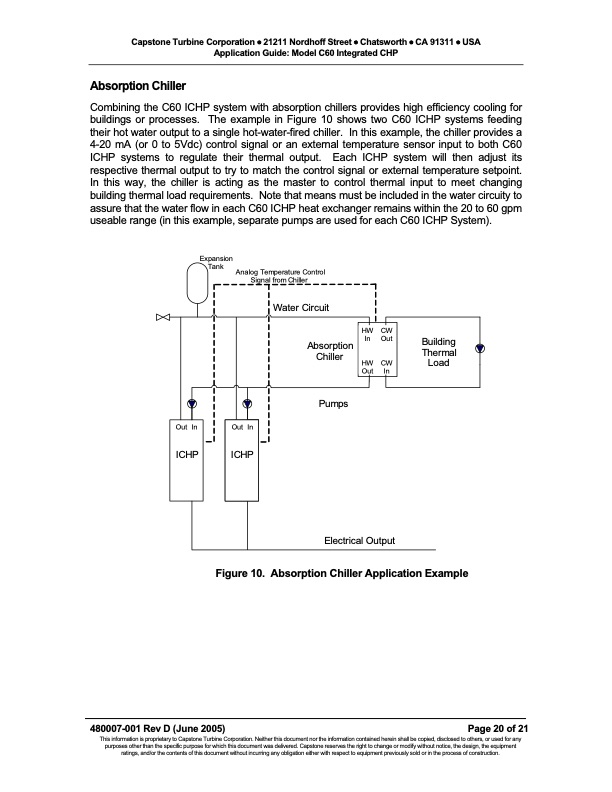

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: Model C60 Integrated CHP Absorption Chiller Combining the C60 ICHP system with absorption chillers provides high efficiency cooling for buildings or processes. The example in Figure 10 shows two C60 ICHP systems feeding their hot water output to a single hot-water-fired chiller. In this example, the chiller provides a 4-20 mA (or 0 to 5Vdc) control signal or an external temperature sensor input to both C60 ICHP systems to regulate their thermal output. Each ICHP system will then adjust its respective thermal output to try to match the control signal or external temperature setpoint. In this way, the chiller is acting as the master to control thermal input to meet changing building thermal load requirements. Note that means must be included in the water circuity to assure that the water flow in each C60 ICHP heat exchanger remains within the 20 to 60 gpm useable range (in this example, separate pumps are used for each C60 ICHP System). Expansion Tank Building Thermal Load Analog Temperature Control Signal from Chiller Water Circuit Absorption Chiller Pumps HW CW In Out HW CW Out In Out In ICHP Out In ICHP Electrical Output Figure 10. Absorption Chiller Application Example 480007-001 Rev D (June 2005) Page 20 of 21 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment ratings, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Application Guide - Model C60 Integrated CHP (ICHP)
