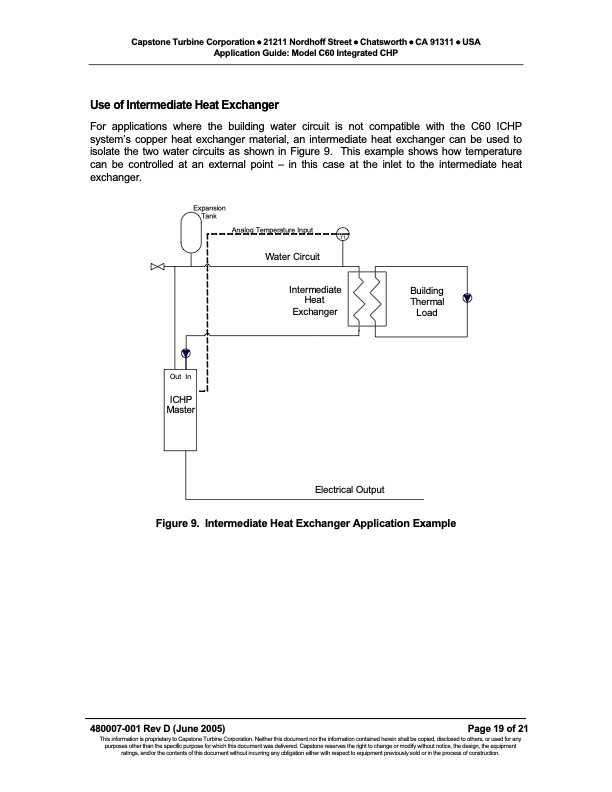

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: Model C60 Integrated CHP Use of Intermediate Heat Exchanger For applications where the building water circuit is not compatible with the C60 ICHP system’s copper heat exchanger material, an intermediate heat exchanger can be used to isolate the two water circuits as shown in Figure 9. This example shows how temperature can be controlled at an external point – in this case at the inlet to the intermediate heat exchanger. Expansion Tank Analog Temperature Input Water Circuit T1 Intermediate Heat Exchanger Building Thermal Load Figure 9. Intermediate Heat Exchanger Application Example 480007-001 Rev D (June 2005) Page 19 of 21 Out In ICHP Master This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment ratings, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Electrical OutputPDF Image | Application Guide - Model C60 Integrated CHP (ICHP)
