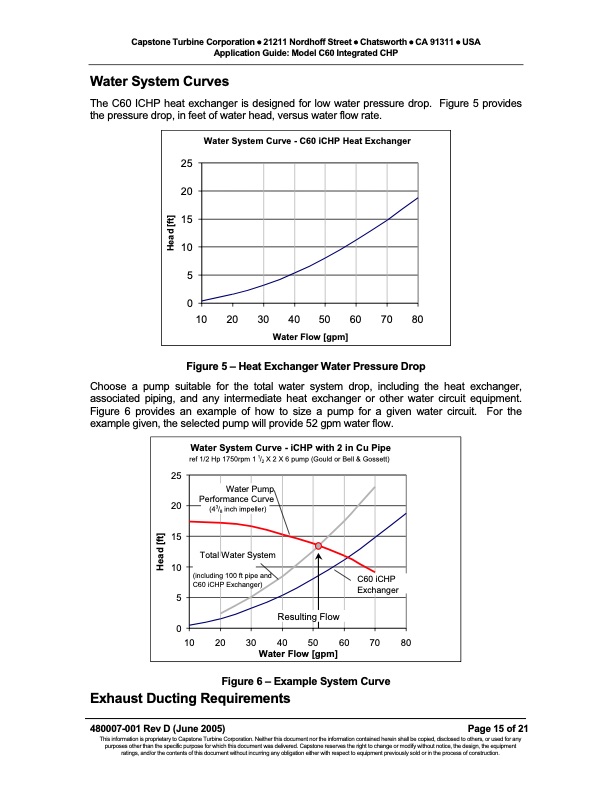

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: Model C60 Integrated CHP Water System Curves The C60 ICHP heat exchanger is designed for low water pressure drop. Figure 5 provides the pressure drop, in feet of water head, versus water flow rate. Water System Curve - C60 iCHP Heat Exchanger 25 20 15 10 5 0 10 20 30 40 50 60 70 80 Water Flow [gpm] Figure 5 – Heat Exchanger Water Pressure Drop Choose a pump suitable for the total water system drop, including the heat exchanger, associated piping, and any intermediate heat exchanger or other water circuit equipment. Figure 6 provides an example of how to size a pump for a given water circuit. For the example given, the selected pump will provide 52 gpm water flow. Water System Curve - iCHP with 2 in Cu Pipe ref 1/2 Hp 1750rpm 1 1/2 X 2 X 6 pump (Gould or Bell & Gossett) 25 20 15 10 5 0 Water Pum Performance Curv (43/8 inch impeller) Total Water System (including 100 ft pipe and C60 iCHP Exchanger) p e C60 iCHP Exchanger Resulting Flow 10 20 30 40 50 60 70 80 Water Flow [gpm] Figure 6 – Example System Curve Exhaust Ducting Requirements 480007-001 Rev D (June 2005) Page 15 of 21 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment ratings, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Head [ft] Head [ft]PDF Image | Application Guide - Model C60 Integrated CHP (ICHP)
