Text from PDF Page: 013

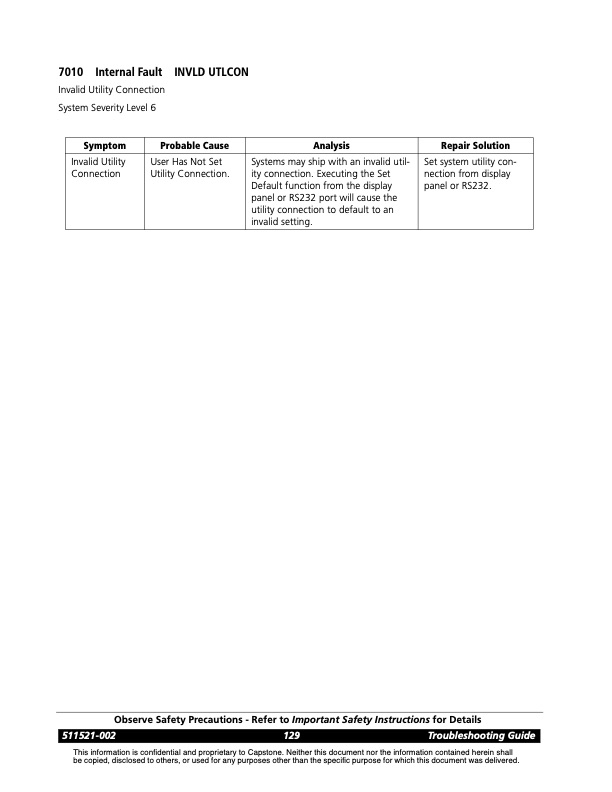

7010 Internal Fault INVLD UTLCON Invalid Utility Connection System Severity Level 6 Symptom Probable Cause Analysis Repair Solution Invalid Utility Connection User Has Not Set Utility Connection. Systems may ship with an invalid util- ity connection. Executing the Set Default function from the display panel or RS232 port will cause the utility connection to default to an invalid setting. Set system utility con- nection from display panel or RS232. Observe Safety Precautions - Refer to Important Safety Instructions for Details 511521-002 129 Troubleshooting Guide This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.
