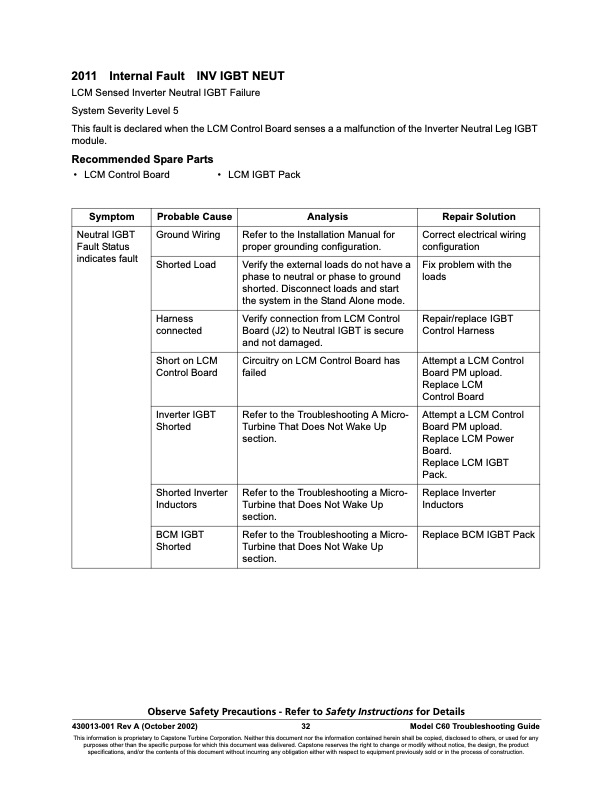

2011 Internal Fault INV IGBT NEUT LCM Sensed Inverter Neutral IGBT Failure System Severity Level 5 This fault is declared when the LCM Control Board senses a a malfunction of the Inverter Neutral Leg IGBT module. Recommended Spare Parts • LCM Control Board • LCM IGBT Pack Symptom Probable Cause Analysis Repair Solution Neutral IGBT Fault Status indicates fault Ground Wiring Refer to the Installation Manual for proper grounding configuration. Correct electrical wiring configuration Shorted Load Verify the external loads do not have a phase to neutral or phase to ground shorted. Disconnect loads and start the system in the Stand Alone mode. Fix problem with the loads Harness connected Verify connection from LCM Control Board (J2) to Neutral IGBT is secure and not damaged. Repair/replace IGBT Control Harness Short on LCM Control Board Circuitry on LCM Control Board has failed Attempt a LCM Control Board PM upload. Replace LCM Control Board Inverter IGBT Shorted Refer to the Troubleshooting A Micro- Turbine That Does Not Wake Up section. Attempt a LCM Control Board PM upload. Replace LCM Power Board. Replace LCM IGBT Pack. Shorted Inverter Inductors Refer to the Troubleshooting a Micro- Turbine that Does Not Wake Up section. Replace Inverter Inductors BCM IGBT Shorted Refer to the Troubleshooting a Micro- Turbine that Does Not Wake Up section. Replace BCM IGBT Pack Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev A (October 2002) 32 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | SERIES 2000 FAULT CODES Power Board Faults
