Text from PDF Page: 003

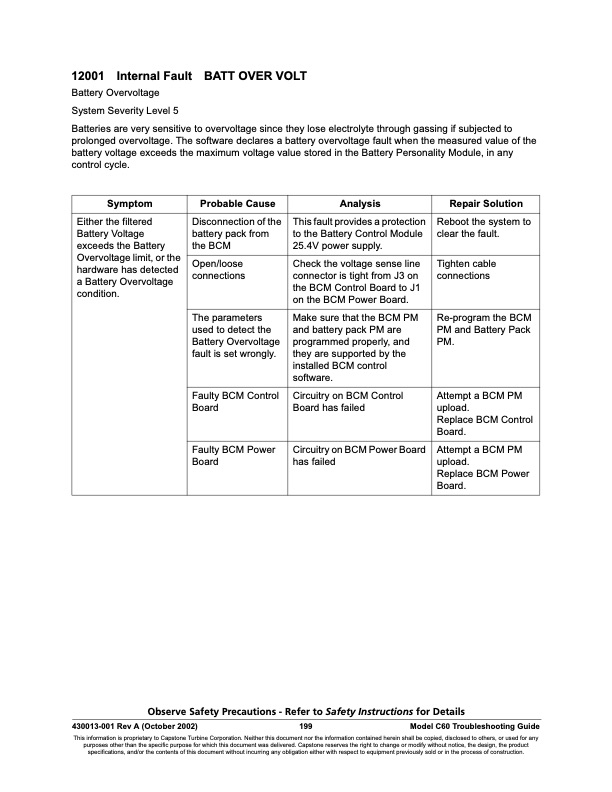

12001 Internal Fault BATT OVER VOLT Battery Overvoltage System Severity Level 5 Batteries are very sensitive to overvoltage since they lose electrolyte through gassing if subjected to prolonged overvoltage. The software declares a battery overvoltage fault when the measured value of the battery voltage exceeds the maximum voltage value stored in the Battery Personality Module, in any control cycle. Symptom Probable Cause Analysis Repair Solution Either the filtered Battery Voltage exceeds the Battery Overvoltage limit, or the hardware has detected a Battery Overvoltage condition. Disconnection of the battery pack from the BCM This fault provides a protection to the Battery Control Module 25.4V power supply. Reboot the system to clear the fault. Open/loose connections Check the voltage sense line connector is tight from J3 on the BCM Control Board to J1 on the BCM Power Board. Tighten cable connections The parameters used to detect the Battery Overvoltage fault is set wrongly. Make sure that the BCM PM and battery pack PM are programmed properly, and they are supported by the installed BCM control software. Re-program the BCM PM and Battery Pack PM. Faulty BCM Control Board Circuitry on BCM Control Board has failed Attempt a BCM PM upload. Replace BCM Control Board. Faulty BCM Power Board Circuitry on BCM Power Board has failed Attempt a BCM PM upload. Replace BCM Power Board. Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev A (October 2002) 199 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | SERIES 12000 FAULT CODES Battery Device
