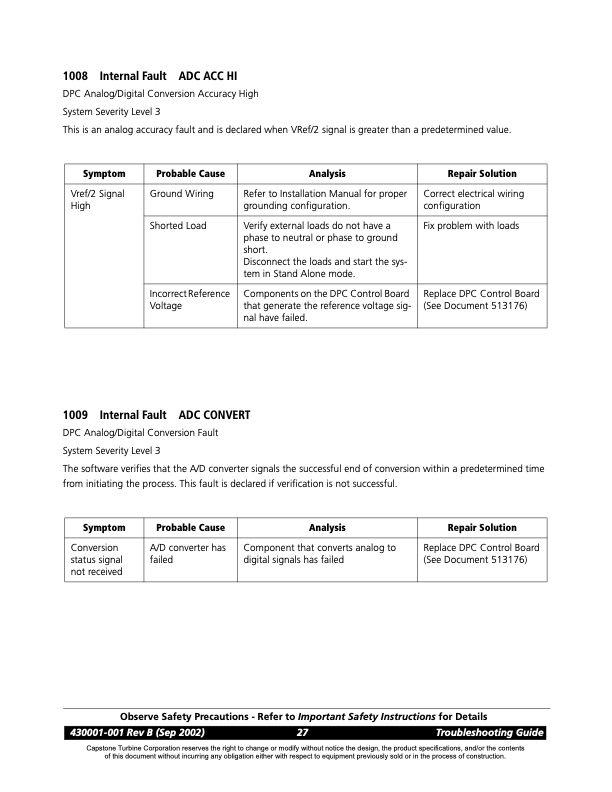

1008 Internal Fault ADC ACC HI DPC Analog/Digital Conversion Accuracy High System Severity Level 3 This is an analog accuracy fault and is declared when VRef/2 signal is greater than a predetermined value. Symptom Probable Cause Analysis Repair Solution Vref/2 Signal High Ground Wiring Refer to Installation Manual for proper grounding configuration. Correct electrical wiring configuration Shorted Load Verify external loads do not have a phase to neutral or phase to ground short. Disconnect the loads and start the sys- tem in Stand Alone mode. Fix problem with loads Incorrect Reference Voltage Components on the DPC Control Board that generate the reference voltage sig- nal have failed. Replace DPC Control Board (See Document 513176) 1009 Internal Fault ADC CONVERT DPC Analog/Digital Conversion Fault System Severity Level 3 The software verifies that the A/D converter signals the successful end of conversion within a predetermined time from initiating the process. This fault is declared if verification is not successful. Symptom Probable Cause Analysis Repair Solution Conversion status signal not received A/D converter has failed Component that converts analog to digital signals has failed Replace DPC Control Board (See Document 513176) Observe Safety Precautions - Refer to Important Safety Instructions for Details 430001-001 Rev B (Sep 2002) 27 Troubleshooting Guide Capstone Turbine Corporation reserves the right to change or modify without notice the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | SERIES 1000 FAULT CODES Control Board Faults
