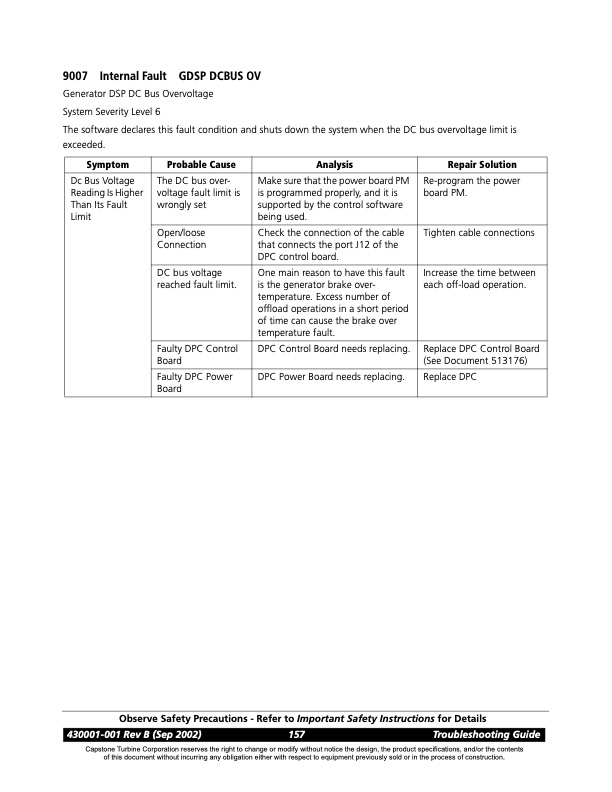

9007 Internal Fault GDSP DCBUS OV Generator DSP DC Bus Overvoltage System Severity Level 6 The software declares this fault condition and shuts down the system when the DC bus overvoltage limit is exceeded. Symptom Probable Cause Analysis Repair Solution Dc Bus Voltage Reading Is Higher Than Its Fault Limit The DC bus over- voltage fault limit is wrongly set Make sure that the power board PM is programmed properly, and it is supported by the control software being used. Re-program the power board PM. Open/loose Connection Check the connection of the cable that connects the port J12 of the DPC control board. Tighten cable connections DC bus voltage reached fault limit. One main reason to have this fault is the generator brake over- temperature. Excess number of offload operations in a short period of time can cause the brake over temperature fault. Increase the time between each off-load operation. Faulty DPC Control Board DPC Control Board needs replacing. Replace DPC Control Board (See Document 513176) Faulty DPC Power Board DPC Power Board needs replacing. Replace DPC Observe Safety Precautions - Refer to Important Safety Instructions for Details 430001-001 Rev B (Sep 2002) 157 Troubleshooting Guide Capstone Turbine Corporation reserves the right to change or modify without notice the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 9000 FAULT CODES Generator Faults
