Text from PDF Page: 017

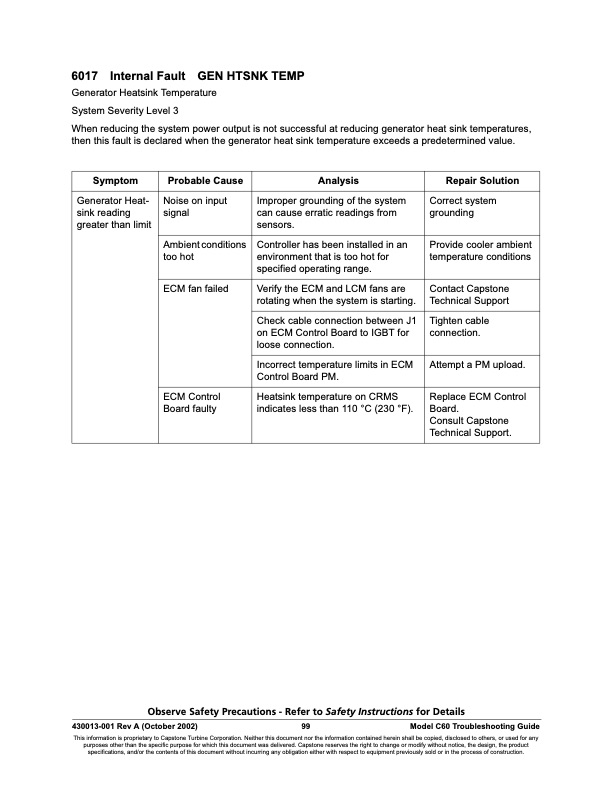

6017 Internal Fault GEN HTSNK TEMP Generator Heatsink Temperature System Severity Level 3 When reducing the system power output is not successful at reducing generator heat sink temperatures, then this fault is declared when the generator heat sink temperature exceeds a predetermined value. Symptom Probable Cause Analysis Repair Solution Generator Heat- sink reading greater than limit Noise on input signal Improper grounding of the system can cause erratic readings from sensors. Correct system grounding Ambient conditions too hot Controller has been installed in an environment that is too hot for specified operating range. Provide cooler ambient temperature conditions ECM fan failed Verify the ECM and LCM fans are rotating when the system is starting. Contact Capstone Technical Support Check cable connection between J1 on ECM Control Board to IGBT for loose connection. Tighten cable connection. Incorrect temperature limits in ECM Control Board PM. Attempt a PM upload. ECM Control Board faulty Heatsink temperature on CRMS indicates less than 110 °C (230 °F). Replace ECM Control Board. Consult Capstone Technical Support. Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev A (October 2002) 99 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 6000 FAULT CODES Operational Faults
