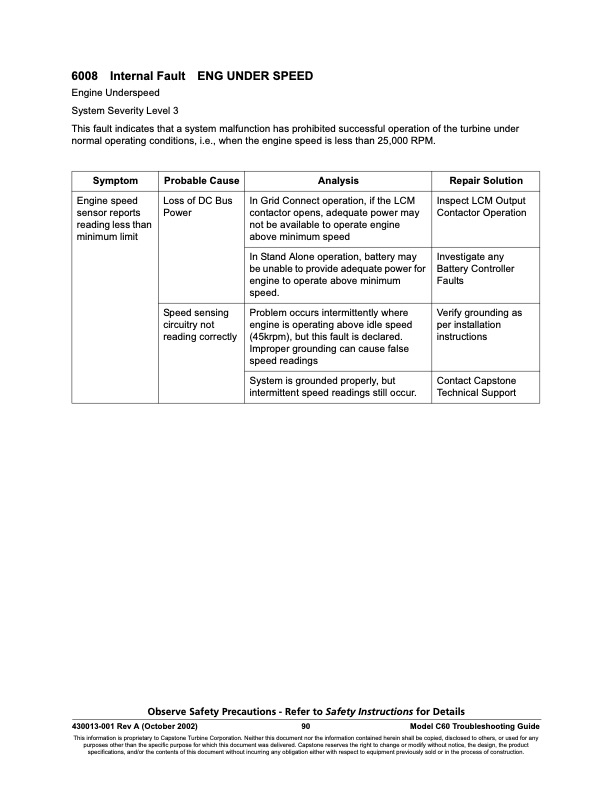

6008 Internal Fault ENG UNDER SPEED Engine Underspeed System Severity Level 3 This fault indicates that a system malfunction has prohibited successful operation of the turbine under normal operating conditions, i.e., when the engine speed is less than 25,000 RPM. Symptom Probable Cause Analysis Repair Solution Engine speed sensor reports reading less than minimum limit Loss of DC Bus Power In Grid Connect operation, if the LCM contactor opens, adequate power may not be available to operate engine above minimum speed Inspect LCM Output Contactor Operation In Stand Alone operation, battery may be unable to provide adequate power for engine to operate above minimum speed. Investigate any Battery Controller Faults Speed sensing circuitry not reading correctly Problem occurs intermittently where engine is operating above idle speed (45krpm), but this fault is declared. Improper grounding can cause false speed readings Verify grounding as per installation instructions System is grounded properly, but intermittent speed readings still occur. Contact Capstone Technical Support Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev A (October 2002) 90 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 6000 FAULT CODES Operational Faults
