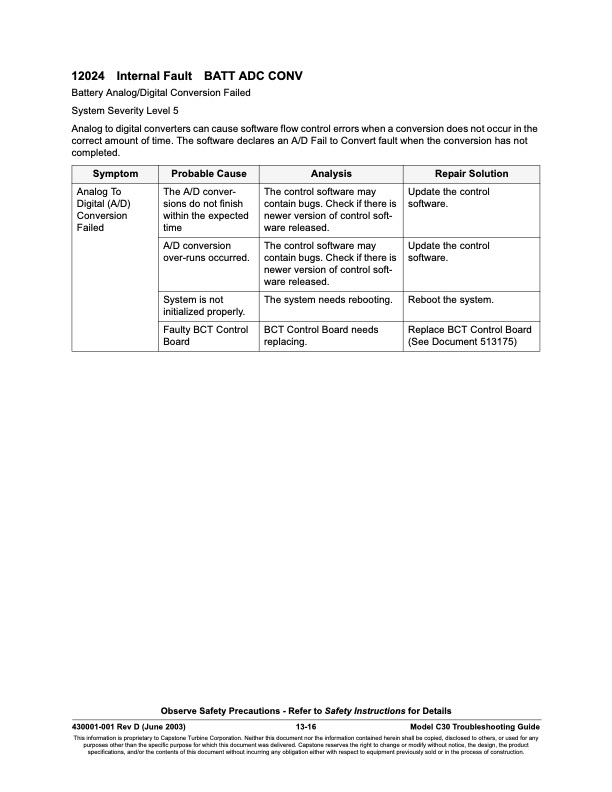

12024 Internal Fault BATT ADC CONV Battery Analog/Digital Conversion Failed System Severity Level 5 Analog to digital converters can cause software flow control errors when a conversion does not occur in the correct amount of time. The software declares an A/D Fail to Convert fault when the conversion has not completed. Symptom Probable Cause Analysis Repair Solution Analog To Digital (A/D) Conversion Failed The A/D conver- sions do not finish within the expected time The control software may contain bugs. Check if there is newer version of control soft- ware released. Update the control software. A/D conversion over-runs occurred. The control software may contain bugs. Check if there is newer version of control soft- ware released. Update the control software. System is not initialized properly. The system needs rebooting. Reboot the system. Faulty BCT Control Board BCT Control Board needs replacing. Replace BCT Control Board (See Document 513175) Observe Safety Precautions - Refer to Safety Instructions for Details 430001-001 Rev D (June 2003) 13-16 Model C30 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 12000 FAULT CODES Battery Device Faults
