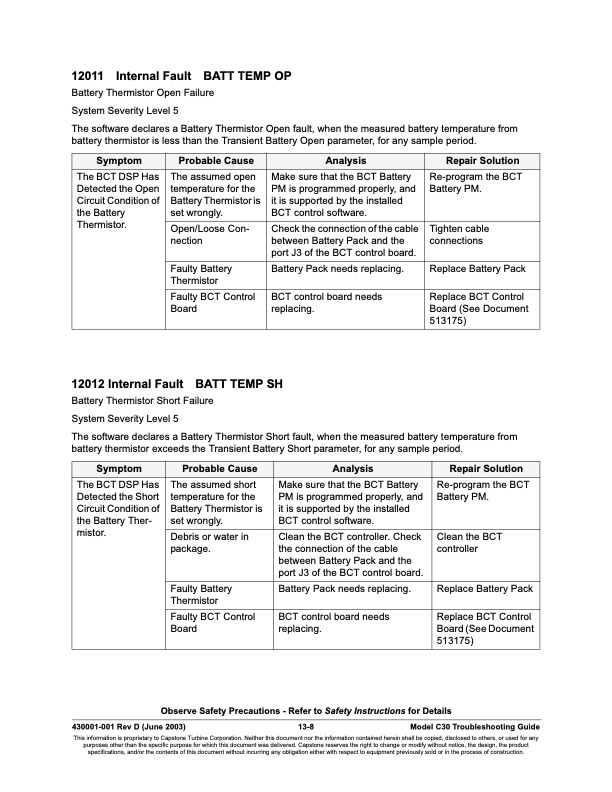

12011 Internal Fault BATT TEMP OP Battery Thermistor Open Failure System Severity Level 5 The software declares a Battery Thermistor Open fault, when the measured battery temperature from battery thermistor is less than the Transient Battery Open parameter, for any sample period. Symptom Probable Cause Analysis Repair Solution The BCT DSP Has Detected the Open Circuit Condition of the Battery Thermistor. The assumed open temperature for the Battery Thermistor is set wrongly. Make sure that the BCT Battery PM is programmed properly, and it is supported by the installed BCT control software. Re-program the BCT Battery PM. Open/Loose Con- nection Check the connection of the cable between Battery Pack and the port J3 of the BCT control board. Tighten cable connections Faulty Battery Thermistor Battery Pack needs replacing. Replace Battery Pack Faulty BCT Control Board BCT control board needs replacing. Replace BCT Control Board (See Document 513175) 12012 Internal Fault BATT TEMP SH Battery Thermistor Short Failure System Severity Level 5 The software declares a Battery Thermistor Short fault, when the measured battery temperature from battery thermistor exceeds the Transient Battery Short parameter, for any sample period. Symptom Probable Cause Analysis Repair Solution The BCT DSP Has Detected the Short Circuit Condition of the Battery Ther- mistor. The assumed short temperature for the Battery Thermistor is set wrongly. Make sure that the BCT Battery PM is programmed properly, and it is supported by the installed BCT control software. Re-program the BCT Battery PM. Debris or water in package. Clean the BCT controller. Check the connection of the cable between Battery Pack and the port J3 of the BCT control board. Clean the BCT controller Faulty Battery Thermistor Battery Pack needs replacing. Replace Battery Pack Faulty BCT Control Board BCT control board needs replacing. Replace BCT Control Board (See Document 513175) Observe Safety Precautions - Refer to Safety Instructions for Details 430001-001 Rev D (June 2003) 13-8 Model C30 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 12000 FAULT CODES Battery Device Faults
