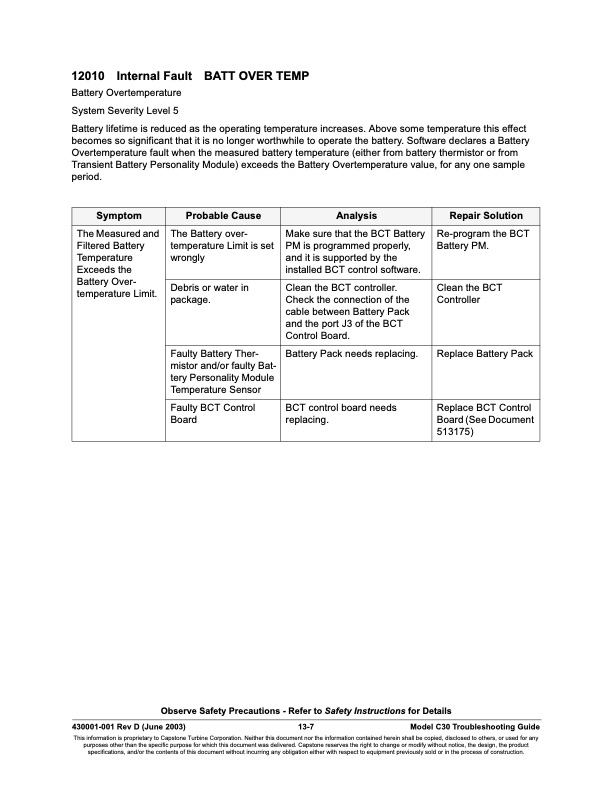

12010 Internal Fault BATT OVER TEMP Battery Overtemperature System Severity Level 5 Battery lifetime is reduced as the operating temperature increases. Above some temperature this effect becomes so significant that it is no longer worthwhile to operate the battery. Software declares a Battery Overtemperature fault when the measured battery temperature (either from battery thermistor or from Transient Battery Personality Module) exceeds the Battery Overtemperature value, for any one sample period. Symptom Probable Cause Analysis Repair Solution The Measured and Filtered Battery Temperature Exceeds the Battery Over- temperature Limit. The Battery over- temperature Limit is set wrongly Make sure that the BCT Battery PM is programmed properly, and it is supported by the installed BCT control software. Re-program the BCT Battery PM. Debris or water in package. Clean the BCT controller. Check the connection of the cable between Battery Pack and the port J3 of the BCT Control Board. Clean the BCT Controller Faulty Battery Ther- mistor and/or faulty Bat- tery Personality Module Temperature Sensor Battery Pack needs replacing. Replace Battery Pack Faulty BCT Control Board BCT control board needs replacing. Replace BCT Control Board (See Document 513175) Observe Safety Precautions - Refer to Safety Instructions for Details 430001-001 Rev D (June 2003) 13-7 Model C30 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 12000 FAULT CODES Battery Device Faults
