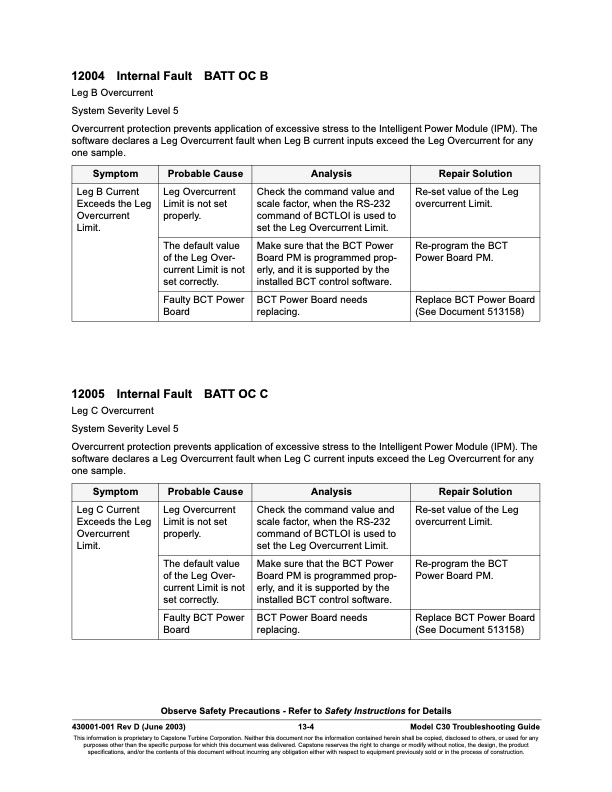

12004 Internal Fault BATT OC B Leg B Overcurrent System Severity Level 5 Overcurrent protection prevents application of excessive stress to the Intelligent Power Module (IPM). The software declares a Leg Overcurrent fault when Leg B current inputs exceed the Leg Overcurrent for any one sample. Symptom Probable Cause Analysis Repair Solution Leg B Current Exceeds the Leg Overcurrent Limit. Leg Overcurrent Limit is not set properly. Check the command value and scale factor, when the RS-232 command of BCTLOI is used to set the Leg Overcurrent Limit. Re-set value of the Leg overcurrent Limit. The default value of the Leg Over- current Limit is not set correctly. Make sure that the BCT Power Board PM is programmed prop- erly, and it is supported by the installed BCT control software. Re-program the BCT Power Board PM. Faulty BCT Power Board BCT Power Board needs replacing. Replace BCT Power Board (See Document 513158) 12005 Internal Fault BATT OC C Leg C Overcurrent System Severity Level 5 Overcurrent protection prevents application of excessive stress to the Intelligent Power Module (IPM). The software declares a Leg Overcurrent fault when Leg C current inputs exceed the Leg Overcurrent for any one sample. Symptom Probable Cause Analysis Repair Solution Leg C Current Exceeds the Leg Overcurrent Limit. Leg Overcurrent Limit is not set properly. Check the command value and scale factor, when the RS-232 command of BCTLOI is used to set the Leg Overcurrent Limit. Re-set value of the Leg overcurrent Limit. The default value of the Leg Over- current Limit is not set correctly. Make sure that the BCT Power Board PM is programmed prop- erly, and it is supported by the installed BCT control software. Re-program the BCT Power Board PM. Faulty BCT Power Board BCT Power Board needs replacing. Replace BCT Power Board (See Document 513158) Observe Safety Precautions - Refer to Safety Instructions for Details 430001-001 Rev D (June 2003) 13-4 Model C30 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 12000 FAULT CODES Battery Device Faults
