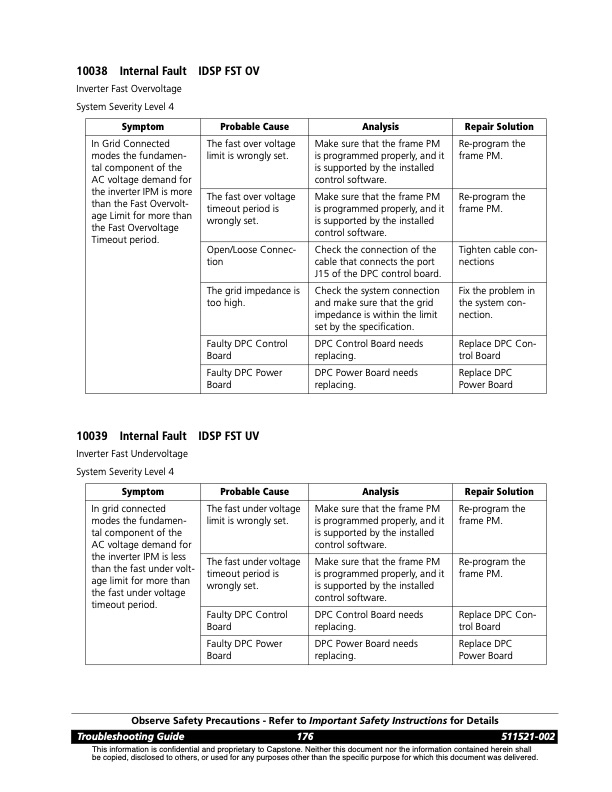

10038 Internal Fault Inverter Fast Overvoltage System Severity Level 4 IDSP FST OV Symptom Probable Cause Analysis Repair Solution In Grid Connected modes the fundamen- tal component of the AC voltage demand for the inverter IPM is more than the Fast Overvolt- age Limit for more than the Fast Overvoltage Timeout period. The fast over voltage limit is wrongly set. Make sure that the frame PM is programmed properly, and it is supported by the installed control software. Re-program the frame PM. The fast over voltage timeout period is wrongly set. Make sure that the frame PM is programmed properly, and it is supported by the installed control software. Re-program the frame PM. Open/Loose Connec- tion Check the connection of the cable that connects the port J15 of the DPC control board. Tighten cable con- nections The grid impedance is too high. Check the system connection and make sure that the grid impedance is within the limit set by the specification. Fix the problem in the system con- nection. Faulty DPC Control Board DPC Control Board needs replacing. Replace DPC Con- trol Board Faulty DPC Power Board DPC Power Board needs replacing. Replace DPC Power Board 10039 Internal Fault Inverter Fast Undervoltage System Severity Level 4 IDSP FST UV Symptom Probable Cause Analysis Repair Solution In grid connected modes the fundamen- tal component of the AC voltage demand for the inverter IPM is less than the fast under volt- age limit for more than the fast under voltage timeout period. The fast under voltage limit is wrongly set. Make sure that the frame PM is programmed properly, and it is supported by the installed control software. Re-program the frame PM. The fast under voltage timeout period is wrongly set. Make sure that the frame PM is programmed properly, and it is supported by the installed control software. Re-program the frame PM. Faulty DPC Control Board DPC Control Board needs replacing. Replace DPC Con- trol Board Faulty DPC Power Board DPC Power Board needs replacing. Replace DPC Power Board Observe Safety Precautions - Refer to Important Safety Instructions for Details Troubleshooting Guide 176 511521-002 This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | Overview SERIES 10000 FAULT CODES Inverter Faults
