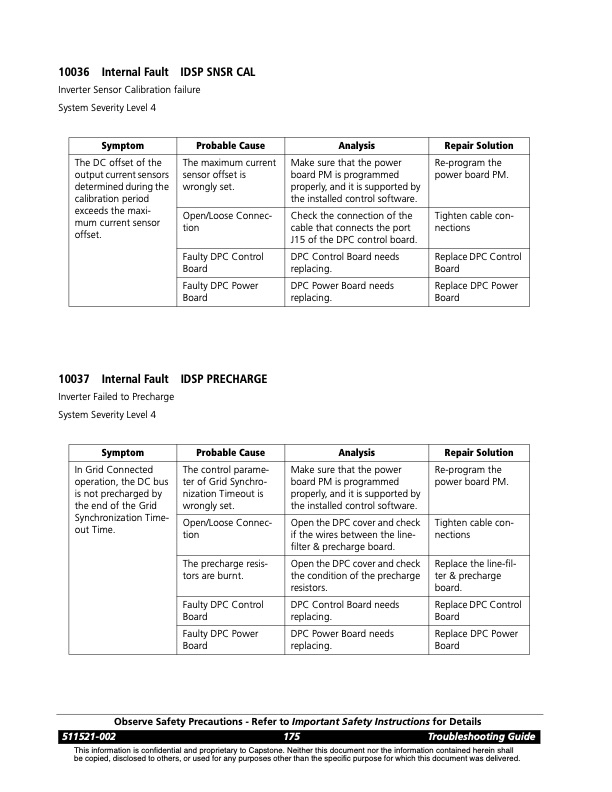

10036 Internal Fault IDSP SNSR CAL Inverter Sensor Calibration failure System Severity Level 4 Symptom Probable Cause Analysis Repair Solution The DC offset of the output current sensors determined during the calibration period exceeds the maxi- mum current sensor offset. The maximum current sensor offset is wrongly set. Make sure that the power board PM is programmed properly, and it is supported by the installed control software. Re-program the power board PM. Open/Loose Connec- tion Check the connection of the cable that connects the port J15 of the DPC control board. Tighten cable con- nections Faulty DPC Control Board DPC Control Board needs replacing. Replace DPC Control Board Faulty DPC Power Board DPC Power Board needs replacing. Replace DPC Power Board 10037 Internal Fault IDSP PRECHARGE Inverter Failed to Precharge System Severity Level 4 Symptom Probable Cause Analysis Repair Solution In Grid Connected operation, the DC bus is not precharged by the end of the Grid Synchronization Time- out Time. The control parame- ter of Grid Synchro- nization Timeout is wrongly set. Make sure that the power board PM is programmed properly, and it is supported by the installed control software. Re-program the power board PM. Open/Loose Connec- tion Open the DPC cover and check if the wires between the line- filter & precharge board. Tighten cable con- nections The precharge resis- tors are burnt. Open the DPC cover and check the condition of the precharge resistors. Replace the line-fil- ter & precharge board. Faulty DPC Control Board DPC Control Board needs replacing. Replace DPC Control Board Faulty DPC Power Board DPC Power Board needs replacing. Replace DPC Power Board Observe Safety Precautions - Refer to Important Safety Instructions for Details 511521-002 175 Troubleshooting Guide This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | Overview SERIES 10000 FAULT CODES Inverter Faults
