Text from PDF Page: 023

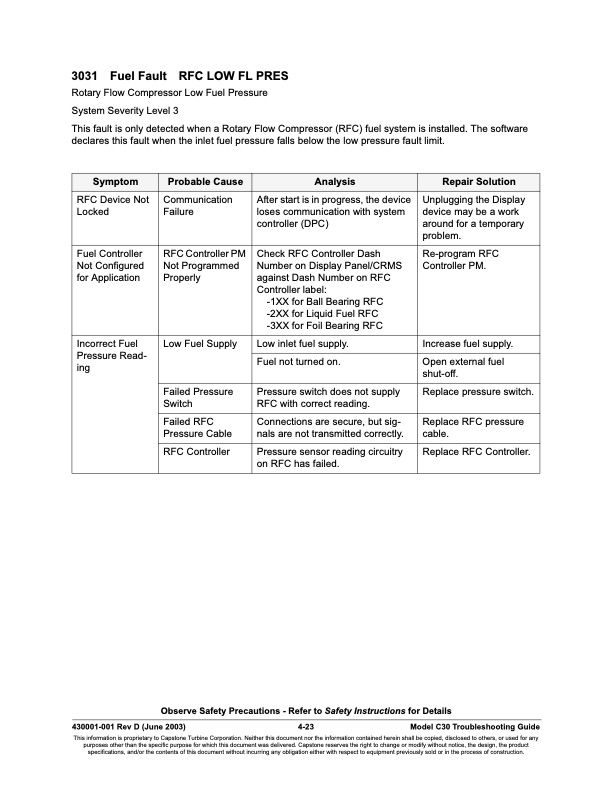

3031 Fuel Fault RFC LOW FL PRES Rotary Flow Compressor Low Fuel Pressure System Severity Level 3 This fault is only detected when a Rotary Flow Compressor (RFC) fuel system is installed. The software declares this fault when the inlet fuel pressure falls below the low pressure fault limit. Symptom Probable Cause Analysis Repair Solution RFC Device Not Locked Communication Failure After start is in progress, the device loses communication with system controller (DPC) Unplugging the Display device may be a work around for a temporary problem. Fuel Controller Not Configured for Application RFC Controller PM Not Programmed Properly Check RFC Controller Dash Number on Display Panel/CRMS against Dash Number on RFC Controller label: -1XX for Ball Bearing RFC -2XX for Liquid Fuel RFC -3XX for Foil Bearing RFC Re-program RFC Controller PM. Incorrect Fuel Pressure Read- ing Low Fuel Supply Low inlet fuel supply. Increase fuel supply. Fuel not turned on. Open external fuel shut-off. Failed Pressure Switch Pressure switch does not supply RFC with correct reading. Replace pressure switch. Failed RFC Pressure Cable Connections are secure, but sig- nals are not transmitted correctly. Replace RFC pressure cable. RFC Controller Pressure sensor reading circuitry on RFC has failed. Replace RFC Controller. Observe Safety Precautions - Refer to Safety Instructions for Details 430001-001 Rev D (June 2003) 4-23 Model C30 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone SERIES 3000 FAULT CODES Sensor Faults
