Text from PDF Page: 022

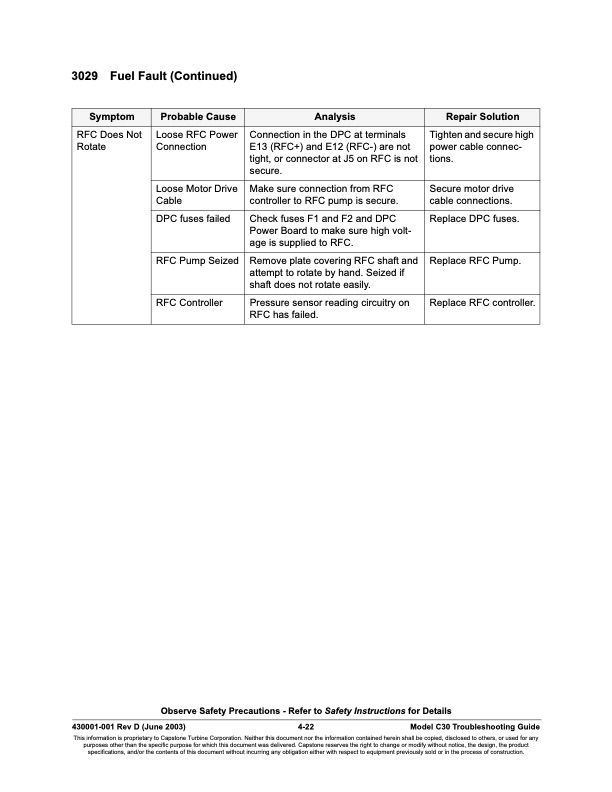

3029 Fuel Fault (Continued) Symptom Probable Cause Analysis Repair Solution RFC Does Not Rotate Loose RFC Power Connection Connection in the DPC at terminals E13 (RFC+) and E12 (RFC-) are not tight, or connector at J5 on RFC is not secure. Tighten and secure high power cable connec- tions. Loose Motor Drive Cable Make sure connection from RFC controller to RFC pump is secure. Secure motor drive cable connections. DPC fuses failed Check fuses F1 and F2 and DPC Power Board to make sure high volt- age is supplied to RFC. Replace DPC fuses. RFC Pump Seized Remove plate covering RFC shaft and attempt to rotate by hand. Seized if shaft does not rotate easily. Replace RFC Pump. RFC Controller Pressure sensor reading circuitry on RFC has failed. Replace RFC controller. Observe Safety Precautions - Refer to Safety Instructions for Details 430001-001 Rev D (June 2003) 4-22 Model C30 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone SERIES 3000 FAULT CODES Sensor Faults
