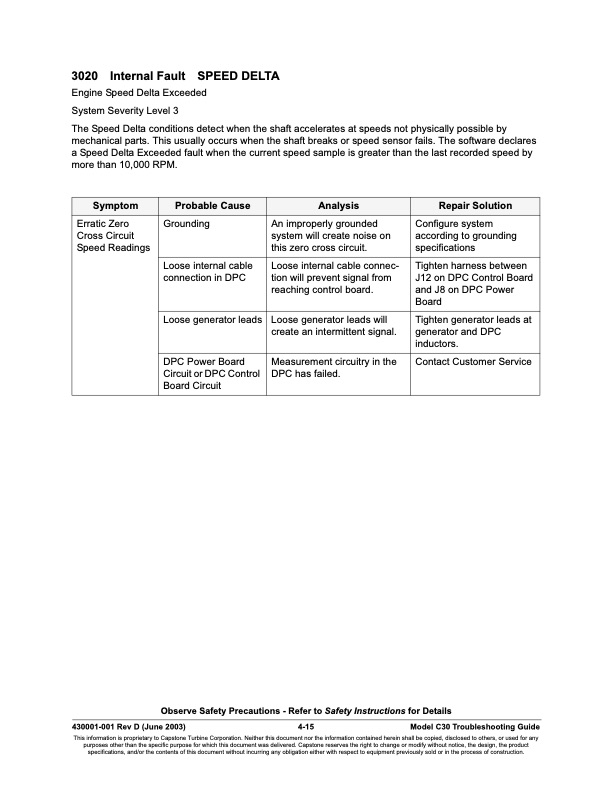

3020 Internal Fault SPEED DELTA Engine Speed Delta Exceeded System Severity Level 3 The Speed Delta conditions detect when the shaft accelerates at speeds not physically possible by mechanical parts. This usually occurs when the shaft breaks or speed sensor fails. The software declares a Speed Delta Exceeded fault when the current speed sample is greater than the last recorded speed by more than 10,000 RPM. Symptom Probable Cause Analysis Repair Solution Erratic Zero Cross Circuit Speed Readings Grounding An improperly grounded system will create noise on this zero cross circuit. Configure system according to grounding specifications Loose internal cable connection in DPC Loose internal cable connec- tion will prevent signal from reaching control board. Tighten harness between J12 on DPC Control Board and J8 on DPC Power Board Loose generator leads Loose generator leads will create an intermittent signal. Tighten generator leads at generator and DPC inductors. DPC Power Board Circuit or DPC Control Board Circuit Measurement circuitry in the DPC has failed. Contact Customer Service Observe Safety Precautions - Refer to Safety Instructions for Details 430001-001 Rev D (June 2003) 4-15 Model C30 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone SERIES 3000 FAULT CODES Sensor Faults
