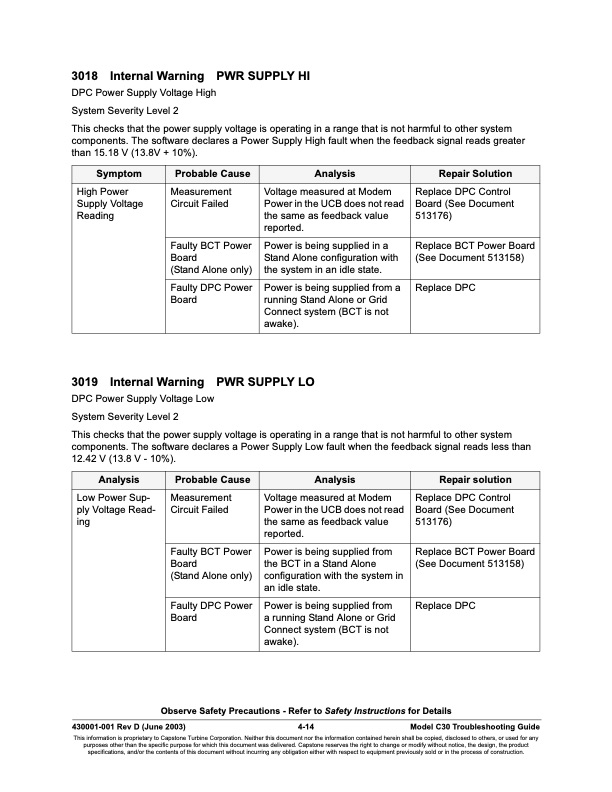

3018 Internal Warning PWR SUPPLY HI DPC Power Supply Voltage High System Severity Level 2 This checks that the power supply voltage is operating in a range that is not harmful to other system components. The software declares a Power Supply High fault when the feedback signal reads greater than 15.18 V (13.8V + 10%). Symptom Probable Cause Analysis Repair Solution High Power Supply Voltage Reading Measurement Circuit Failed Voltage measured at Modem Power in the UCB does not read the same as feedback value reported. Replace DPC Control Board (See Document 513176) Faulty BCT Power Board (Stand Alone only) Power is being supplied in a Stand Alone configuration with the system in an idle state. Replace BCT Power Board (See Document 513158) Faulty DPC Power Board Power is being supplied from a running Stand Alone or Grid Connect system (BCT is not awake). Replace DPC 3019 Internal Warning PWR SUPPLY LO DPC Power Supply Voltage Low System Severity Level 2 This checks that the power supply voltage is operating in a range that is not harmful to other system components. The software declares a Power Supply Low fault when the feedback signal reads less than 12.42 V (13.8 V - 10%). Analysis Probable Cause Analysis Repair solution Low Power Sup- ply Voltage Read- ing Measurement Circuit Failed Voltage measured at Modem Power in the UCB does not read the same as feedback value reported. Replace DPC Control Board (See Document 513176) Faulty BCT Power Board (Stand Alone only) Power is being supplied from the BCT in a Stand Alone configuration with the system in an idle state. Replace BCT Power Board (See Document 513158) Faulty DPC Power Board Power is being supplied from a running Stand Alone or Grid Connect system (BCT is not awake). Replace DPC Observe Safety Precautions - Refer to Safety Instructions for Details 430001-001 Rev D (June 2003) 4-14 Model C30 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone SERIES 3000 FAULT CODES Sensor Faults
