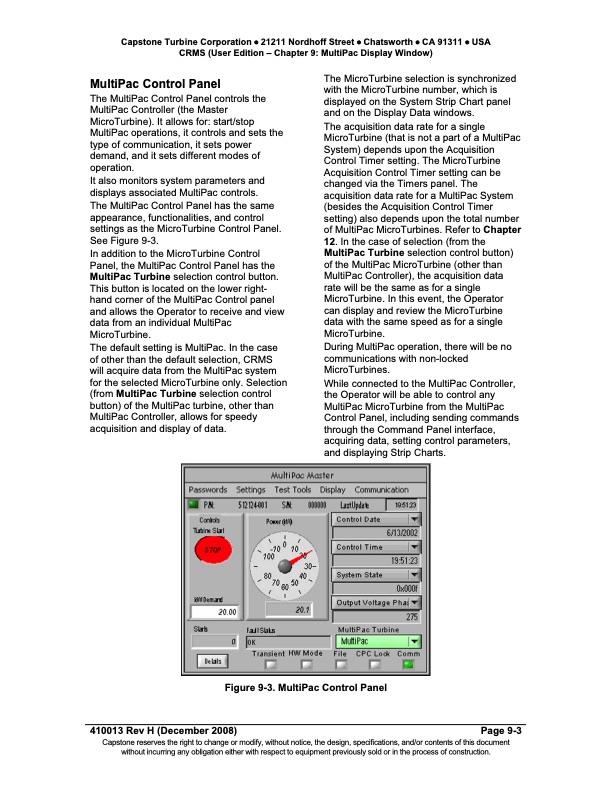

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (User Edition – Chapter 9: MultiPac Display Window) MultiPac Control Panel The MultiPac Control Panel controls the MultiPac Controller (the Master MicroTurbine). It allows for: start/stop MultiPac operations, it controls and sets the type of communication, it sets power demand, and it sets different modes of operation. It also monitors system parameters and displays associated MultiPac controls. The MultiPac Control Panel has the same appearance, functionalities, and control settings as the MicroTurbine Control Panel. See Figure 9-3. In addition to the MicroTurbine Control Panel, the MultiPac Control Panel has the MultiPac Turbine selection control button. This button is located on the lower right- hand corner of the MultiPac Control panel and allows the Operator to receive and view data from an individual MultiPac MicroTurbine. The default setting is MultiPac. In the case of other than the default selection, CRMS will acquire data from the MultiPac system for the selected MicroTurbine only. Selection (from MultiPac Turbine selection control button) of the MultiPac turbine, other than MultiPac Controller, allows for speedy acquisition and display of data. The MicroTurbine selection is synchronized with the MicroTurbine number, which is displayed on the System Strip Chart panel and on the Display Data windows. The acquisition data rate for a single MicroTurbine (that is not a part of a MultiPac System) depends upon the Acquisition Control Timer setting. The MicroTurbine Acquisition Control Timer setting can be changed via the Timers panel. The acquisition data rate for a MultiPac System (besides the Acquisition Control Timer setting) also depends upon the total number of MultiPac MicroTurbines. Refer to Chapter 12. In the case of selection (from the MultiPac Turbine selection control button) of the MultiPac MicroTurbine (other than MultiPac Controller), the acquisition data rate will be the same as for a single MicroTurbine. In this event, the Operator can display and review the MicroTurbine data with the same speed as for a single MicroTurbine. During MultiPac operation, there will be no communications with non-locked MicroTurbines. While connected to the MultiPac Controller, the Operator will be able to control any MultiPac MicroTurbine from the MultiPac Control Panel, including sending commands through the Command Panel interface, acquiring data, setting control parameters, and displaying Strip Charts. Figure 9-3. MultiPac Control Panel 410013 Rev H (December 2008) Page 9-3 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Remote Monitoring System (User Edition)
