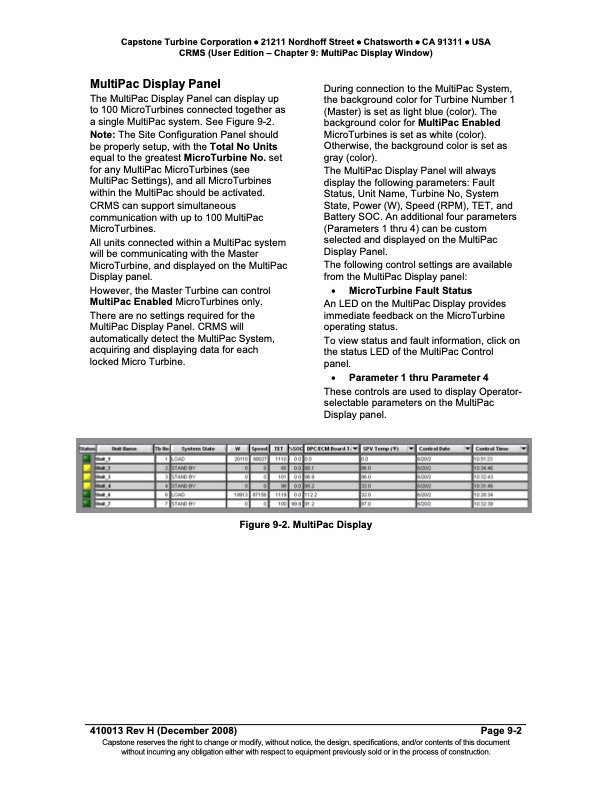

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (User Edition – Chapter 9: MultiPac Display Window) MultiPac Display Panel The MultiPac Display Panel can display up to 100 MicroTurbines connected together as a single MultiPac system. See Figure 9-2. Note: The Site Configuration Panel should be properly setup, with the Total No Units equal to the greatest MicroTurbine No. set for any MultiPac MicroTurbines (see MultiPac Settings), and all MicroTurbines within the MultiPac should be activated. CRMS can support simultaneous communication with up to 100 MultiPac MicroTurbines. All units connected within a MultiPac system will be communicating with the Master MicroTurbine, and displayed on the MultiPac Display panel. However, the Master Turbine can control MultiPac Enabled MicroTurbines only. There are no settings required for the MultiPac Display Panel. CRMS will automatically detect the MultiPac System, acquiring and displaying data for each locked Micro Turbine. During connection to the MultiPac System, the background color for Turbine Number 1 (Master) is set as light blue (color). The background color for MultiPac Enabled MicroTurbines is set as white (color). Otherwise, the background color is set as gray (color). The MultiPac Display Panel will always display the following parameters: Fault Status, Unit Name, Turbine No, System State, Power (W), Speed (RPM), TET, and Battery SOC. An additional four parameters (Parameters 1 thru 4) can be custom selected and displayed on the MultiPac Display Panel. The following control settings are available from the MultiPac Display panel: MicroTurbine Fault Status An LED on the MultiPac Display provides immediate feedback on the MicroTurbine operating status. To view status and fault information, click on the status LED of the MultiPac Control panel. Parameter 1 thru Parameter 4 These controls are used to display Operator- selectable parameters on the MultiPac Display panel. 410013 Rev H (December 2008) Page 9-2 Figure 9-2. MultiPac Display Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Remote Monitoring System (User Edition)
