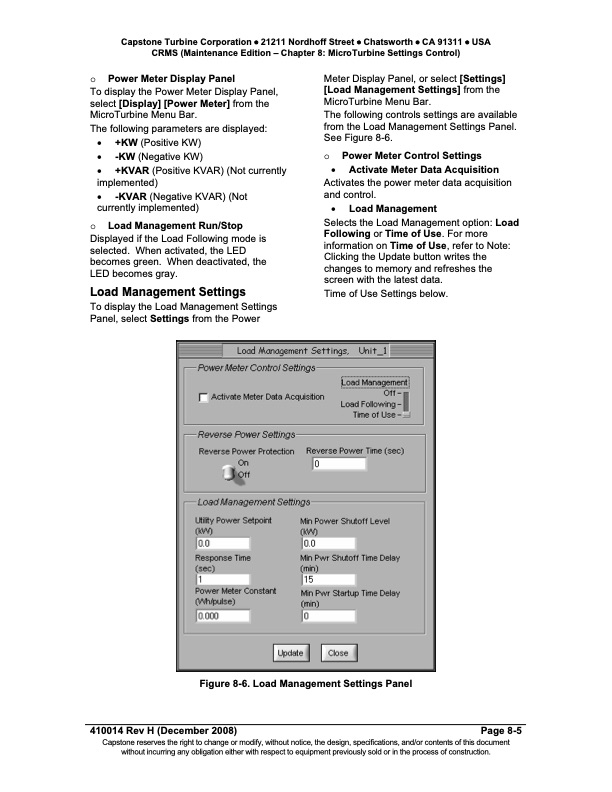

o +KW (Positive KW) -KW (Negative KW) +KVAR (Positive KVAR) (Not currently implemented) -KVAR (Negative KVAR) (Not currently implemented) Load Management Run/Stop Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (Maintenance Edition – Chapter 8: MicroTurbine Settings Control) o Power Meter Display Panel To display the Power Meter Display Panel, select [Display] [Power Meter] from the MicroTurbine Menu Bar. The following parameters are displayed: Meter Display Panel, or select [Settings] [Load Management Settings] from the MicroTurbine Menu Bar. The following controls settings are available from the Load Management Settings Panel. See Figure 8-6. o Power Meter Control Settings Activate Meter Data Acquisition Activates the power meter data acquisition and control. Load Management Selects the Load Management option: Load Following or Time of Use. For more information on Time of Use, refer to Note: Clicking the Update button writes the changes to memory and refreshes the screen with the latest data. Displayed if the Load Following mode is selected. When activated, the LED becomes green. When deactivated, the LED becomes gray. Load Management Settings To display the Load Management Settings Panel, select Settings from the Power Time of Use Settings below. Figure 8-6. Load Management Settings Panel 410014 Rev H (December 2008) Page 8-5 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Remote Monitoring System (Maintenance Edition)
