PDF Publication Title:
Text from PDF Page: 032

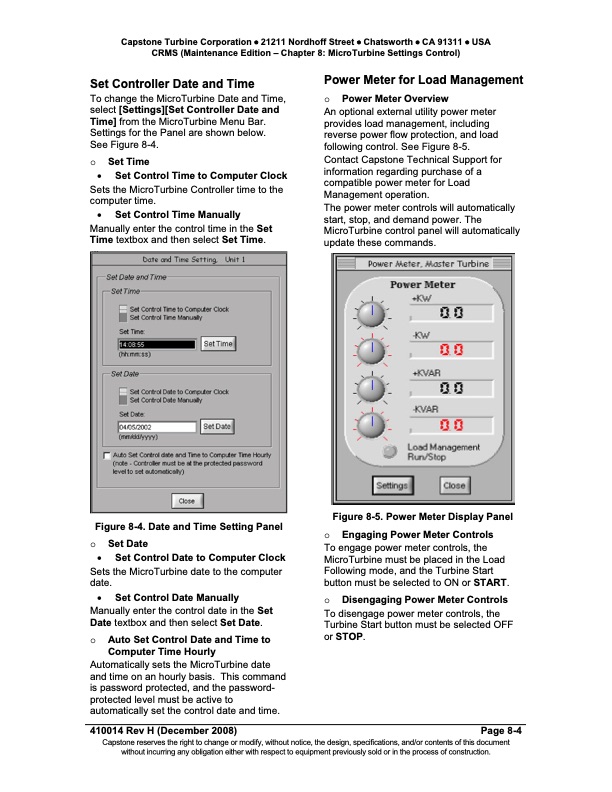

o Set Time Set Control Time to Computer Clock Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (Maintenance Edition – Chapter 8: MicroTurbine Settings Control) Set Controller Date and Time To change the MicroTurbine Date and Time, select [Settings][Set Controller Date and Time] from the MicroTurbine Menu Bar. Settings for the Panel are shown below. See Figure 8-4. Power Meter for Load Management o Power Meter Overview An optional external utility power meter provides load management, including reverse power flow protection, and load following control. See Figure 8-5. Contact Capstone Technical Support for information regarding purchase of a compatible power meter for Load Management operation. The power meter controls will automatically start, stop, and demand power. The MicroTurbine control panel will automatically update these commands. Figure 8-5. Power Meter Display Panel o Engaging Power Meter Controls To engage power meter controls, the MicroTurbine must be placed in the Load Following mode, and the Turbine Start button must be selected to ON or START. o Disengaging Power Meter Controls To disengage power meter controls, the Turbine Start button must be selected OFF or STOP. Page 8-4 Sets the MicroTurbine Controller time to the computer time. Set Control Time Manually Manually enter the control time in the Set Time textbox and then select Set Time. Figure 8-4. Date and Time Setting Panel o Set Date Set Control Date to Computer Clock Sets the MicroTurbine date to the computer date. Set Control Date Manually Manually enter the control date in the Set Date textbox and then select Set Date. o Auto Set Control Date and Time to Computer Time Hourly Automatically sets the MicroTurbine date and time on an hourly basis. This command is password protected, and the password- protected level must be active to automatically set the control date and time. 410014 Rev H (December 2008) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Remote Monitoring System (Maintenance Edition)
PDF Search Title:
Technical Reference Capstone Remote Monitoring System (Maintenance Edition)Original File Name Searched:
410014H_CRMS_Maintenance_Edition_TR.pdfDIY PDF Search: Google It | Yahoo | Bing
