PDF Publication Title:
Text from PDF Page: 026

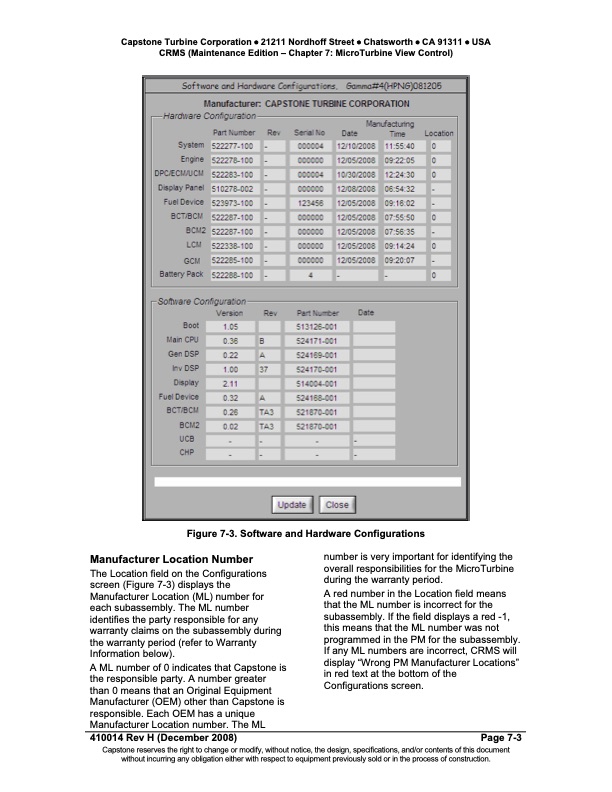

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (Maintenance Edition – Chapter 7: MicroTurbine View Control) Figure 7-3. Software and Hardware Configurations Manufacturer Location Number The Location field on the Configurations screen (Figure 7-3) displays the Manufacturer Location (ML) number for each subassembly. The ML number identifies the party responsible for any warranty claims on the subassembly during the warranty period (refer to Warranty Information below). A ML number of 0 indicates that Capstone is the responsible party. A number greater than 0 means that an Original Equipment Manufacturer (OEM) other than Capstone is responsible. Each OEM has a unique Manufacturer Location number. The ML 410014 Rev H (December 2008) number is very important for identifying the overall responsibilities for the MicroTurbine during the warranty period. A red number in the Location field means that the ML number is incorrect for the subassembly. If the field displays a red -1, this means that the ML number was not programmed in the PM for the subassembly. If any ML numbers are incorrect, CRMS will display “Wrong PM Manufacturer Locations” in red text at the bottom of the Configurations screen. Page 7-3 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Remote Monitoring System (Maintenance Edition)
PDF Search Title:
Technical Reference Capstone Remote Monitoring System (Maintenance Edition)Original File Name Searched:
410014H_CRMS_Maintenance_Edition_TR.pdfDIY PDF Search: Google It | Yahoo | Bing
