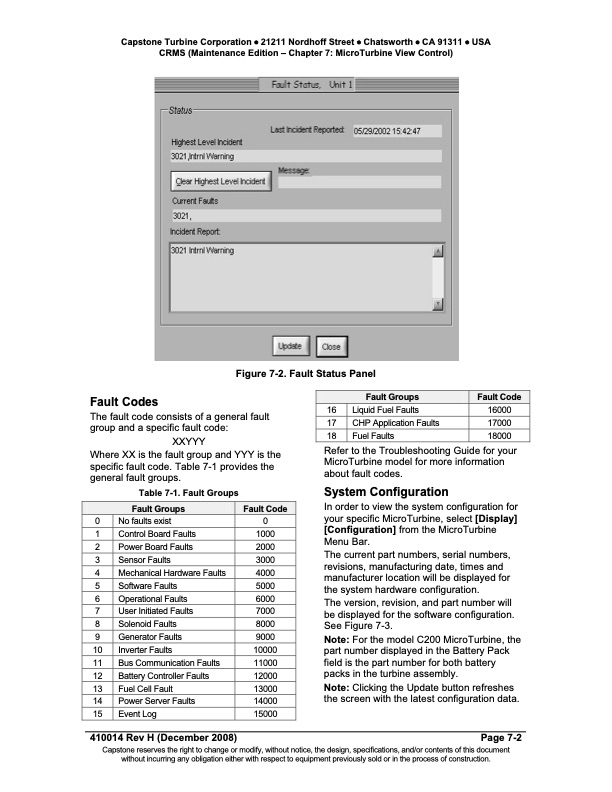

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (Maintenance Edition – Chapter 7: MicroTurbine View Control) Figure 7-2. Fault Status Panel Fault Groups Fault Code Fault Codes The fault code consists of a general fault group and a specific fault code: XXYYY Where XX is the fault group and YYY is the specific fault code. Table 7-1 provides the general fault groups. Table 7-1. Fault Groups 0 No faults exist 0 1 Control Board Faults 1000 2 Power Board Faults 2000 3 Sensor Faults 3000 4 Mechanical Hardware Faults 4000 5 Software Faults 5000 6 Operational Faults 6000 7 User Initiated Faults 7000 8 Solenoid Faults 8000 9 Generator Faults 9000 10 Inverter Faults 10000 11 Bus Communication Faults 11000 12 Battery Controller Faults 12000 13 Fuel Cell Fault 13000 14 Power Server Faults 14000 15 Event Log 15000 410014 Rev H (December 2008) 16 Liquid Fuel Faults 17 CHP Application Faults 18 Fuel Faults 16000 17000 18000 Refer to the Troubleshooting Guide for your MicroTurbine model for more information about fault codes. System Configuration In order to view the system configuration for your specific MicroTurbine, select [Display] [Configuration] from the MicroTurbine Menu Bar. The current part numbers, serial numbers, revisions, manufacturing date, times and manufacturer location will be displayed for the system hardware configuration. The version, revision, and part number will be displayed for the software configuration. See Figure 7-3. Note: For the model C200 MicroTurbine, the part number displayed in the Battery Pack field is the part number for both battery packs in the turbine assembly. Note: Clicking the Update button refreshes the screen with the latest configuration data. Page 7-2 Fault Groups Fault Code Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Remote Monitoring System (Maintenance Edition)
