PDF Publication Title:
Text from PDF Page: 011

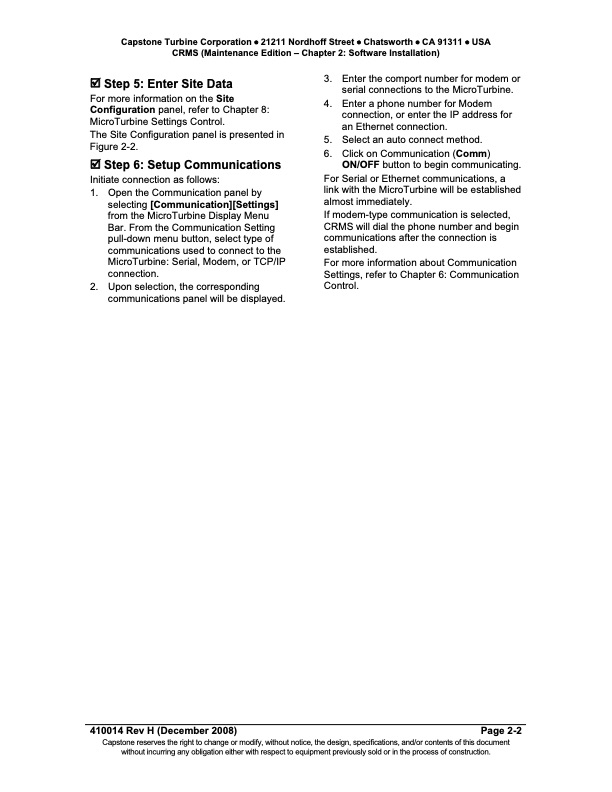

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (Maintenance Edition – Chapter 2: Software Installation) Step 5: Enter Site Data For more information on the Site Configuration panel, refer to Chapter 8: MicroTurbine Settings Control. The Site Configuration panel is presented in Figure 2-2. Step 6: Setup Communications Initiate connection as follows: 1. Open the Communication panel by selecting [Communication][Settings] from the MicroTurbine Display Menu Bar. From the Communication Setting pull-down menu button, select type of communications used to connect to the MicroTurbine: Serial, Modem, or TCP/IP connection. 2. Upon selection, the corresponding communications panel will be displayed. 3. Enter the comport number for modem or serial connections to the MicroTurbine. 4. Enter a phone number for Modem connection, or enter the IP address for an Ethernet connection. 5. Select an auto connect method. 6. Click on Communication (Comm) ON/OFF button to begin communicating. For Serial or Ethernet communications, a link with the MicroTurbine will be established almost immediately. If modem-type communication is selected, CRMS will dial the phone number and begin communications after the connection is established. For more information about Communication Settings, refer to Chapter 6: Communication Control. 410014 Rev H (December 2008) Page 2-2 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Remote Monitoring System (Maintenance Edition)
PDF Search Title:
Technical Reference Capstone Remote Monitoring System (Maintenance Edition)Original File Name Searched:
410014H_CRMS_Maintenance_Edition_TR.pdfDIY PDF Search: Google It | Yahoo | Bing
