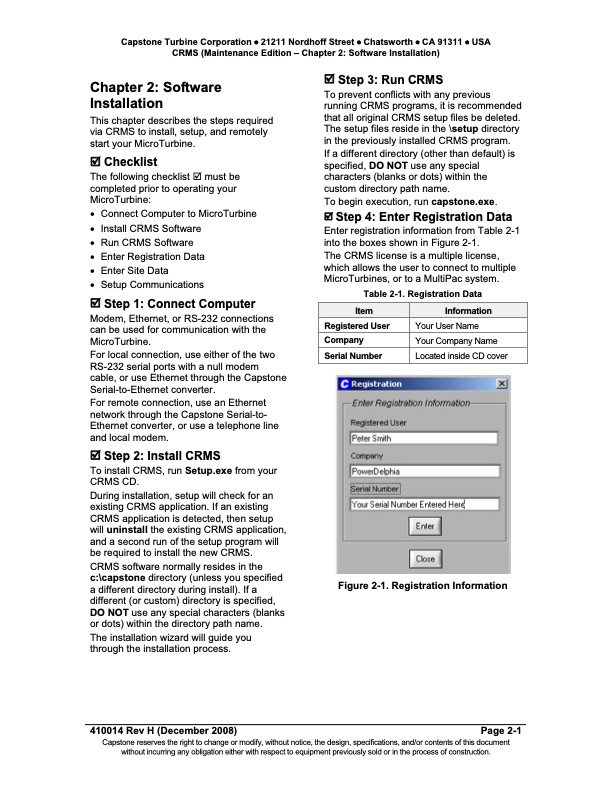

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (Maintenance Edition – Chapter 2: Software Installation) Chapter 2: Software Installation This chapter describes the steps required via CRMS to install, setup, and remotely start your MicroTurbine. Checklist The following checklistmust be completed prior to operating your MicroTurbine: ConnectComputertoMicroTurbine InstallCRMSSoftware RunCRMSSoftware EnterRegistrationData EnterSiteData SetupCommunications Step 1: Connect Computer Modem, Ethernet, or RS-232 connections can be used for communication with the MicroTurbine. For local connection, use either of the two RS-232 serial ports with a null modem cable, or use Ethernet through the Capstone Serial-to-Ethernet converter. For remote connection, use an Ethernet network through the Capstone Serial-to- Ethernet converter, or use a telephone line and local modem. Step 2: Install CRMS To install CRMS, run Setup.exe from your CRMS CD. During installation, setup will check for an existing CRMS application. If an existing CRMS application is detected, then setup will uninstall the existing CRMS application, and a second run of the setup program will be required to install the new CRMS. CRMS software normally resides in the c:\capstone directory (unless you specified a different directory during install). If a different (or custom) directory is specified, DO NOT use any special characters (blanks or dots) within the directory path name. The installation wizard will guide you through the installation process. 410014 Rev H (December 2008) Step 3: Run CRMS To prevent conflicts with any previous running CRMS programs, it is recommended that all original CRMS setup files be deleted. The setup files reside in the \setup directory in the previously installed CRMS program. If a different directory (other than default) is specified, DO NOT use any special characters (blanks or dots) within the custom directory path name. To begin execution, run capstone.exe. Step 4: Enter Registration Data Enter registration information from Table 2-1 into the boxes shown in Figure 2-1. The CRMS license is a multiple license, which allows the user to connect to multiple MicroTurbines, or to a MultiPac system. Table 2-1. Registration Data Item Information Registered User Company Serial Number Your User Name Your Company Name Located inside CD cover Figure 2-1. Registration Information Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Page 2-1PDF Image | Technical Reference Capstone Remote Monitoring System (Maintenance Edition)
PDF Search Title:
Technical Reference Capstone Remote Monitoring System (Maintenance Edition)Original File Name Searched:
410014H_CRMS_Maintenance_Edition_TR.pdfDIY PDF Search: Google It | Yahoo | Bing
