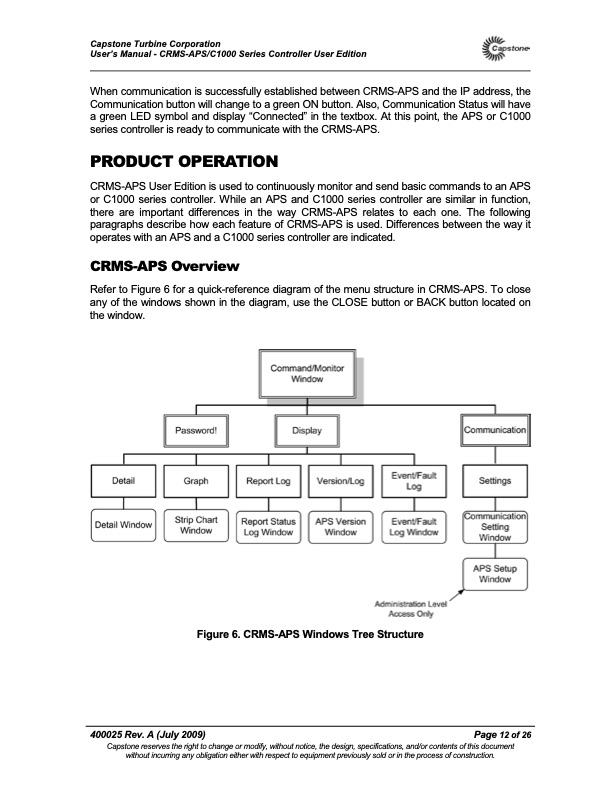

Capstone Turbine Corporation User’s Manual - CRMS-APS/C1000 Series Controller User Edition When communication is successfully established between CRMS-APS and the IP address, the Communication button will change to a green ON button. Also, Communication Status will have a green LED symbol and display “Connected” in the textbox. At this point, the APS or C1000 series controller is ready to communicate with the CRMS-APS. PRODUCT OPERATION CRMS-APS User Edition is used to continuously monitor and send basic commands to an APS or C1000 series controller. While an APS and C1000 series controller are similar in function, there are important differences in the way CRMS-APS relates to each one. The following paragraphs describe how each feature of CRMS-APS is used. Differences between the way it operates with an APS and a C1000 series controller are indicated. CRMS-APS Overview Refer to Figure 6 for a quick-reference diagram of the menu structure in CRMS-APS. To close any of the windows shown in the diagram, use the CLOSE button or BACK button located on the window. Figure 6. CRMS-APS Windows Tree Structure 400025 Rev. A (July 2009) Page 12 of 26 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | C1000 Series Controller Software
